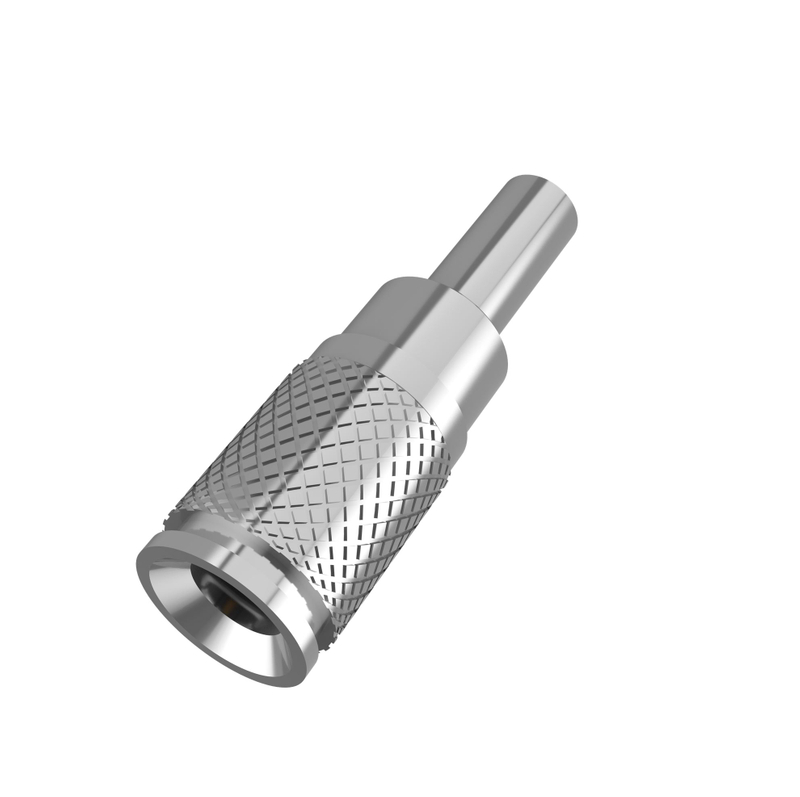

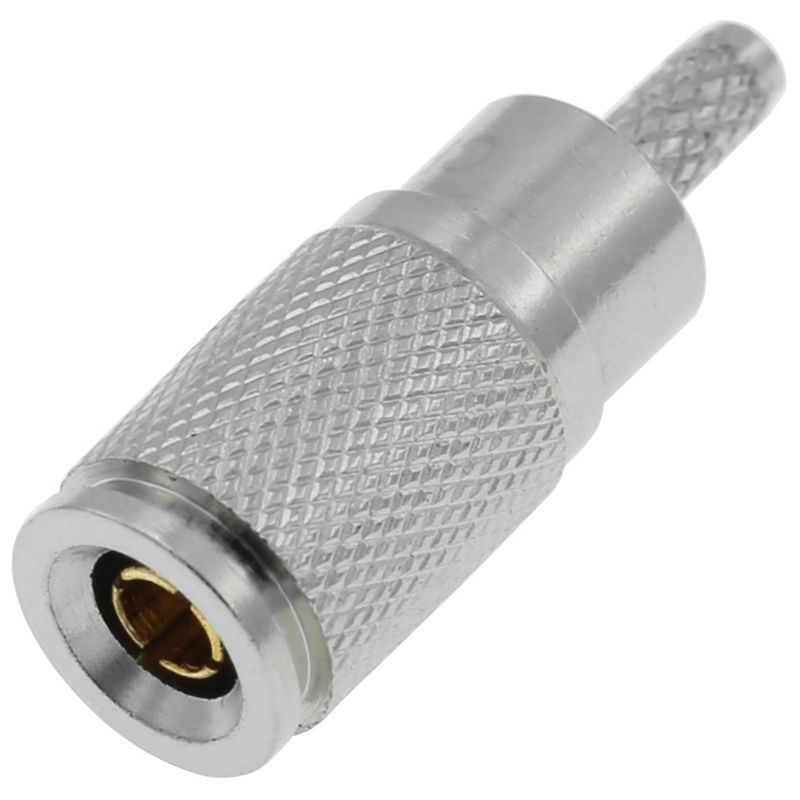

1.0/2.3 Connector Plug Straight Crimping For ST823 Coaxial Cable

The European telecommunications sector pioneered the 1.0-2.3 connector family in the 1990s. Because of its modest size, this interface is well suited to applications with limited space.
DIN 1.0-2.3 connectors are available in 50 and 75 ohm types, with maximum frequencies of 10 and 4 GHz, respectively. These performance requirements allow high-density, high-data-rate digital broadcast formats including audio, video, and other activities. DIN 41626, DIN 47297, and NFC 93-571 are all international standards that the DIN 1.0-2.3 connector family complies with.
  • 22-777
  • 80-7161-104-01
  • Male
  • Straight
  • Crimping
  • Crimping
  • ST823
  • 80-7161-104-01.pdf
  • 80-7161-104-01.stp
Availability:
Quantity:
Inquire Add to Basket

Body PlatingNickel
Body MaterialBrass
Cable Type ST823
Contact PlatingGold
Contact MaterialBeryllium copper
Contact TerminationSoldering/Crimping
Coupling MechanismSnap on
HS Code8536909000
Frequency (Max GHz)3
GenderPlug
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Size CategoryMiniature
Temperature Range-65   -165 °C
Mating Cycles500   Min
Interface SpecificationMIL-STD-348


Previous:
Next:
1.0/2.3 Connector Plug Straight Crimping For ST823 1.0/2.3 Connector Plug Straight Crimping Coaxial Cable 1.0/2.3 Connector Plug Straight ST823 Coaxial Cable Crimping 1.0/2.3 Connector Plug Coaxial Cable Straight Crimping For ST823 1.0/2.3 Connector Plug Straight Crimping ST823 1.0/2.3 Connector Plug ST823 Coaxial Cable 1.0/2.3 RF Connectors DIN41626 RF connector 1.0/2.3 cable assemblies

Related Products

1.0/2.3 Female Straight PCB RF Connectors
1.0/2.3 Female Straight PCB RF Connectors

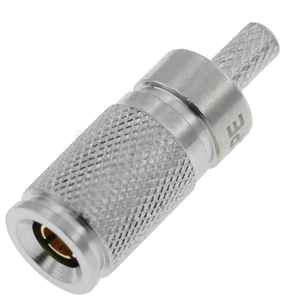

1.0/2.3 Connectors Male Straight Crimping For ST212 Cable
