Overview

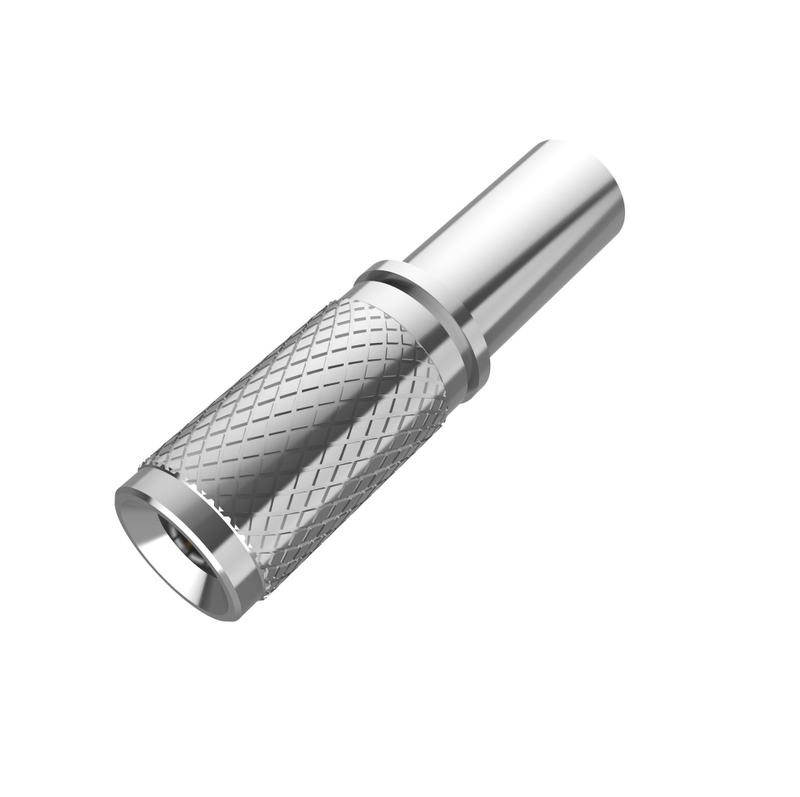

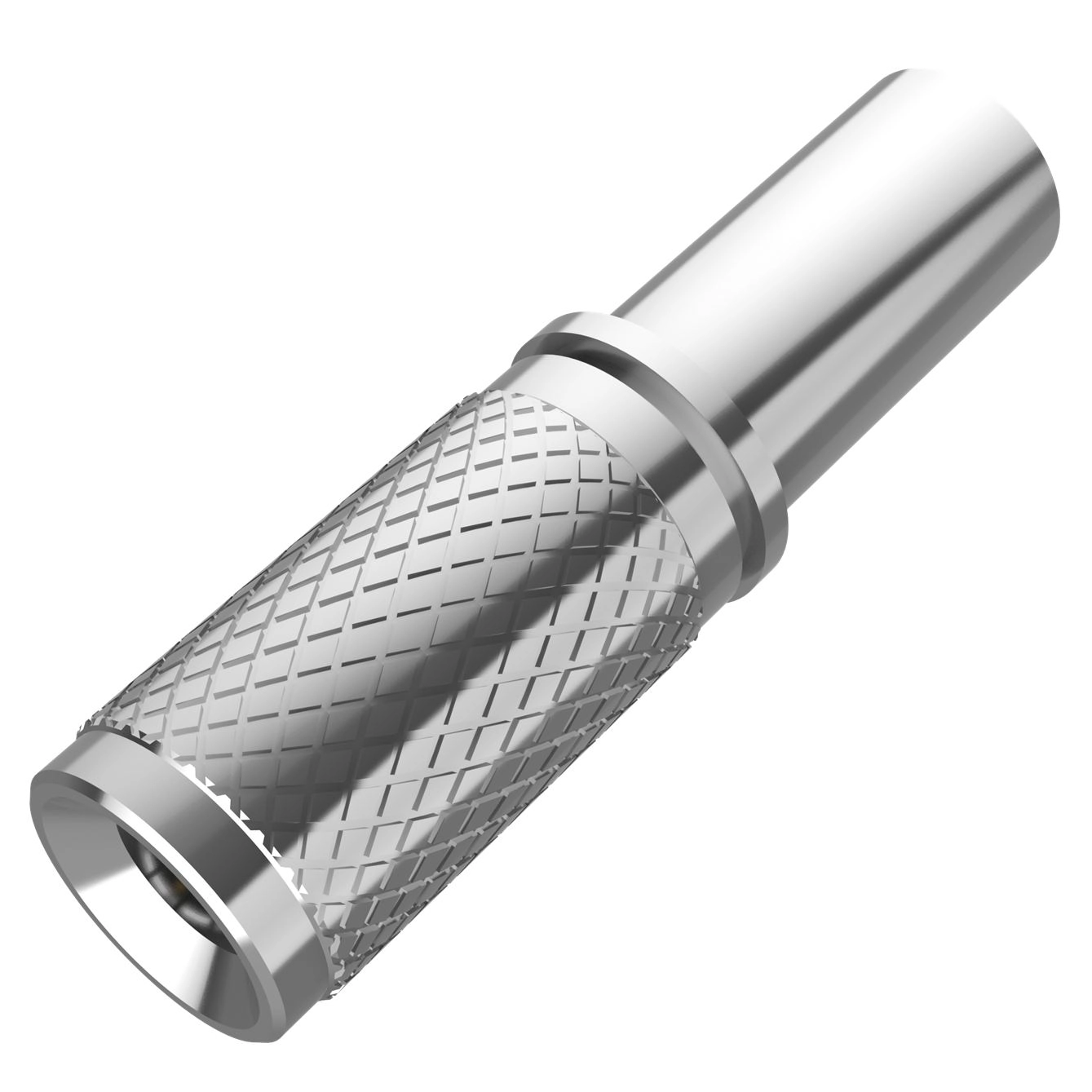

The 1.0/2.3 RF connector is a Rugged threaded design for vibration resistance ,miniature-size, push-pull RF coaxial connector designed for applications such as MRI, CT, and ultrasound imaging devices,patient monitoring systems with wireless connectivity, as well as railway communications and signaling systems, requiring reliable performance up to 10 GHz (50 OHMS system) and 2 GHz (75 OHMS). The DIN 1.0-2.3 connector complies with DIN 41626, DIN 47297, and NFC 93-571 international specifications.
Features
Push-pull / self-lock Coupling mechanism
Frequency Range DC to ~10 GHz (50 OHMS) / up to 2GHz (75 OHMS)
Impedance Available: 50 (RF/microwave systems) and 75 (broadcast/video applications).
Ideal for high vibration applications
Durability >500 times
Space saving compact design
Applications
Telecom equipment
Broadcast
Instrumentation
Test and measurement equipment
MRI, CT, and ultrasound imaging devices
patient monitoring systems with wireless connectivity
railway communications and signaling systems
Specification
Body Plating | Nickel |
Body Material | Brass |
Cable Type | LMR200 |
Contact Plating | Gold |
Contact Material | Phosphor bronze |
Contact Termination | Crimp |
Coupling Mechanism | Push-pull |
HS Code | 8536909000 |
Frequency (Max GHz) | 6 |
Gender | Male |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Size Category | Miniature |
Temperature Range | -65 to 165 ° C |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | DIN 41626, 47297, NFC 93-571 |
