MCX Connector Plug Crimp Right Angle For RTK031 Cable
You are here: Home » Products » RF Connector » MCX RF Connector » MCX Connector Plug Crimp Right Angle For RTK031 Cable
Share to:

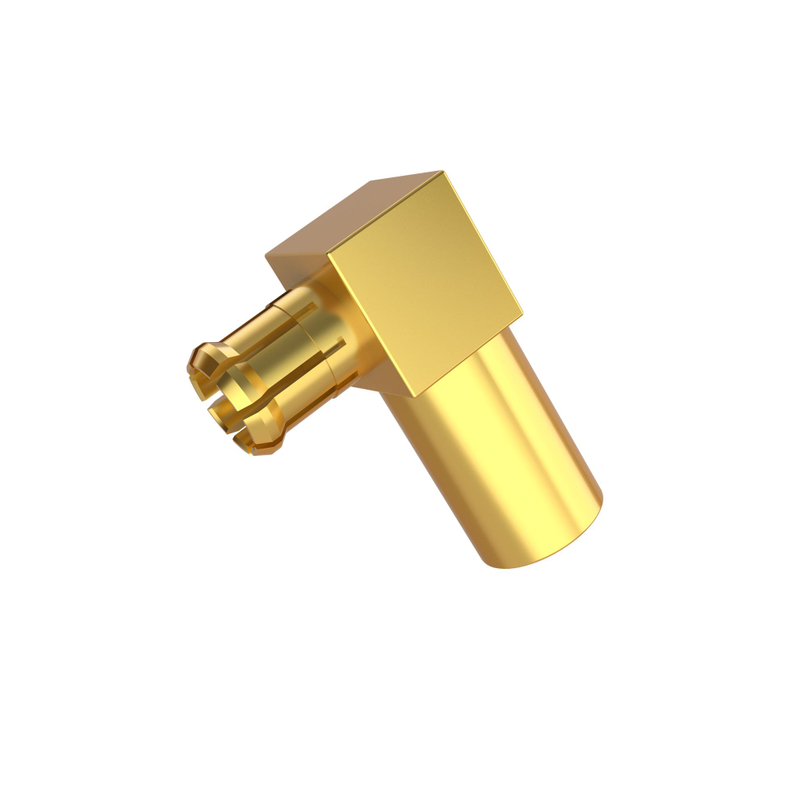

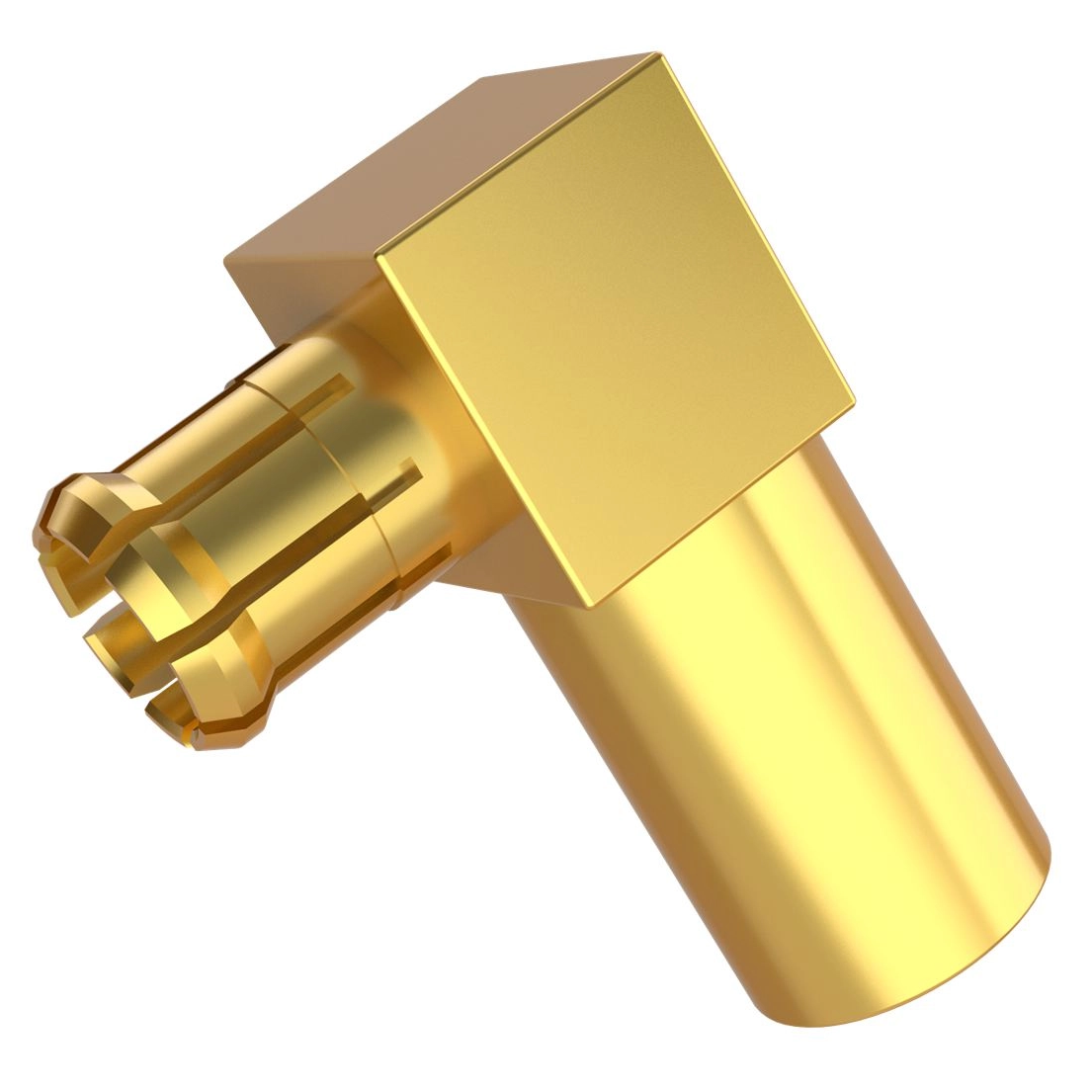

MCX Connector Plug Crimp Right Angle For RTK031 Cable

Snap-on locking is available on MCX 50 OHMS coaxial connectors. They're mostly used in fixed and wireless communication systems that use RF cable connections up to 6 GHz. MCX connectors are very reliable, have a long service life, and are simple to install. The PCB connectors come in tape and reel packaging for automated board assembly as well as blister packing. For medical and aeronautical applications, we also have non-magnetic options available.
  • 85-5160-116-01
  • Male
  • Right angle
  • Crimping
  • Crimping
  • RTK031
  • 85-5160-116-01.pdf
  • 85-5160-116-01.stp
Availability:
Quantity:

frontpage

MCX Features:


Broadband performance with low return loss DC to 6 GHz

Quick connect/disconnect snap-on mating saves installation time

A wide range of miniature RG flexible coaxial cables, including semi-rigid cable providing customers flexibility in their design and manufacturing

Available for 50 or 75 ohm applications



Materials&Electroplating
Conduct Brass/   Silver or Golden Plating
Insulator PTFE
Body Brass   /Ternary or nickel or silver
Other Parts Brass/   Nickel Plating
Electric Performance
Impedance 50   OHMS
Frequency Range 0-3GHz
VSWR ≤1.30
Rating Voltage 500V
Environmental
Temperature Rating -65°C   to +165°C
Corrosion (Salt Spray) MIL-STD-202,   Method 101, Condition B
Vibration MIL-STD-202,   Method 204, Condition D, 20 Gs
Shock MIL-STD-202,   Method 213, Condition I, 100 Gs
Thermal Shock MIL-STD-202,   Method 107. Cond. B, -65°C to +125°C
Moisture Resistance MIL-STD-202,   Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202,   Method 105, Condition C, 70k Ft.

FAQ

1. Sample delivery time

Regular model need 15 days, some complex connectors need 25 days


2. Sample Fee

The most of RF connector is CNC parts,don't need to make mold.

Through, each part need be tuning the CNC, usually one sample need 200 USD cost.

The fee will return after 5K bulk order


3. The Quarantee

Brass RF connector is one year, the stainless steel connector is three year.

Also, depend on the material of contact, Beryllium contact have better lifetime.


4. ROHS&REACH

Our product fully compliance with ROHS&REACH.


5.Does LENORF offer military class product

Yes. We honor to offer military product with super stable quality.


6. MOQ

Regular connector: 500PCS.

Adaptor:100PCS

Military connector:100PCS


7. Materials

The popular material is brass,stainless steel for body, PTFE,PEEK for insulator,

brass, phosphor bronze, beryllium copper for contact, as well as aluminum,titanium alloy.


Application:

Telecommunication,Military,Broadband,Industry,Medical,5G,Radar,Aerospace.
