N Connector Plug Crimping Straight For LMR100 Coaxial Cable
You are here: Home » Products » RF Connector » N RF Connector » N Connector Plug Crimping Straight For LMR100 Coaxial Cable
Share to:

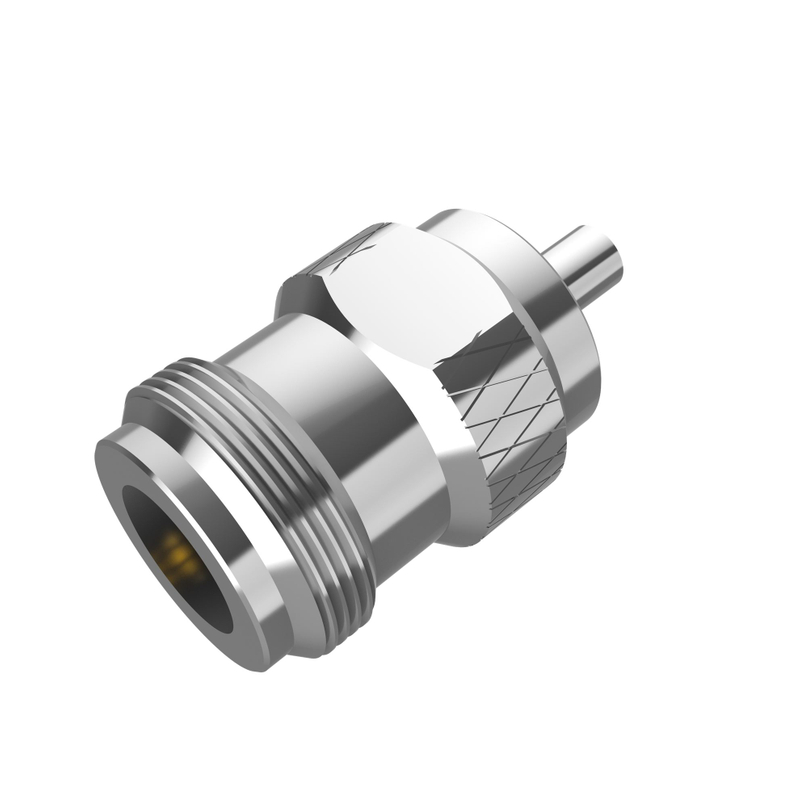

N Connector Plug Crimping Straight For LMR100 Coaxial Cable

N Connector Plug Crimping Straight For LMR100 Coaxial Cable
Body Plating Tri-metal
Body Material Brass
Cable Type  -
Contact Plating Gold
Contact Material Beryllium copper
Contact Termination Crimping
Coupling Mechanism Threaded
HS Code 8536909000
Frequency (Max GHz) 18
Gender Jack
Impedance (Ohms) 50
Insulator Material PTFE
Orientation Straight
Size Category Standard
Temperature Range -65 -165 °C
Termination Style Crimping
Thread Direction Standard
Mating Cycles 500 Min
Interface Specification MIL-STD-348
  • 87-5061-116-03
  • Female
  • Straight
  • Clamping
  • Crimping
  • LMR100
  • 87-5061-116-03.pdf
  • 87-5061-116-03.stp
Availability:
Quantity:

Body   PlatingTri-metal
Body MaterialBrass
Cable Type -
Contact PlatingGold
Contact MaterialBeryllium   copper
Contact TerminationCrimping
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)18
GenderJack
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Size CategoryStandard
Temperature Range-65  ~ +165 °C
Termination StyleCrimping
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348

FAQ

1. Sample delivery time

Regular model need 15 days, some complex connectors need 25 days


2. Sample Fee

The most of RF connector is CNC parts,don't need to make mold.

Through, each part need be tuning the CNC, usually one sample need 200 USD cost.

The fee will return after 5K bulk order


3. The quarantee

Brass RF connector is one year, the stainless steel connector is three year.

Also, depend on the material of contact, Beryllium contact have better lifetime.


4. ROHS&REACH

Our product fully compliance with ROHS&REACH.


5.Does LENORF offer military class product

Yes. We honor to offer military product with super stable quality.


Application:

Telecommunication,Military,Broadband,Industry,Medical,Antenna
