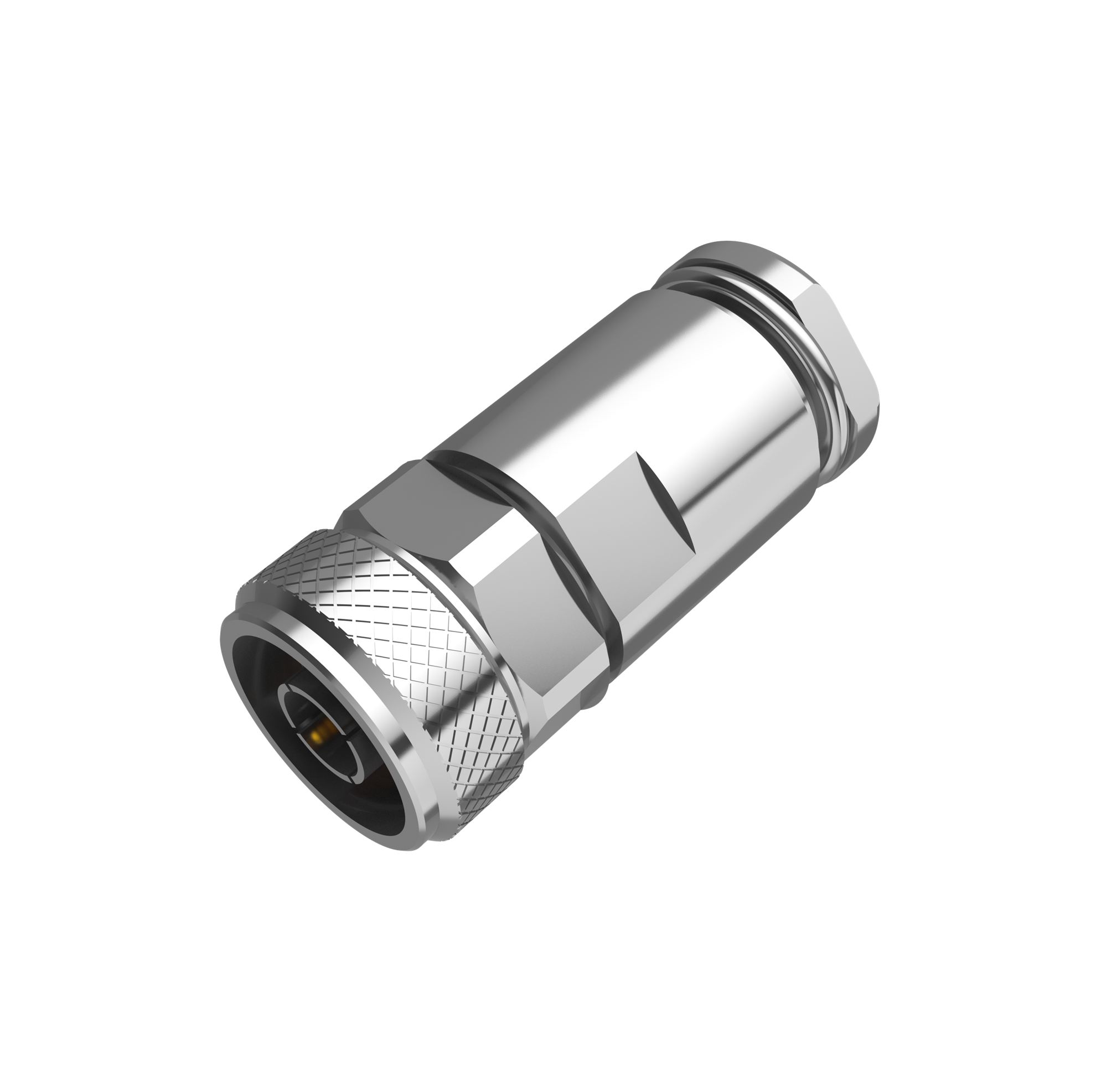

20-664
87-5161-210-04
Male
Straight
Clamping
Crimping
LMR400
Availability: | |
---|---|
Quantity: | |
Body Plating | Tri-metal |
Body Material | Brass |
Cable Type | - |
Contact Plating | Gold |
Contact Material | Beryllium copper |
Contact Termination | Crimping |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 18 |
Gender | Plug |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Size Category | Standard |
Temperature Range | -65 -165 °C |
Termination Style | Crimping |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348 |
Body Plating | Tri-metal |
Body Material | Brass |
Cable Type | - |
Contact Plating | Gold |
Contact Material | Beryllium copper |
Contact Termination | Crimping |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 18 |
Gender | Plug |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Size Category | Standard |
Temperature Range | -65 -165 °C |
Termination Style | Crimping |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348 |
