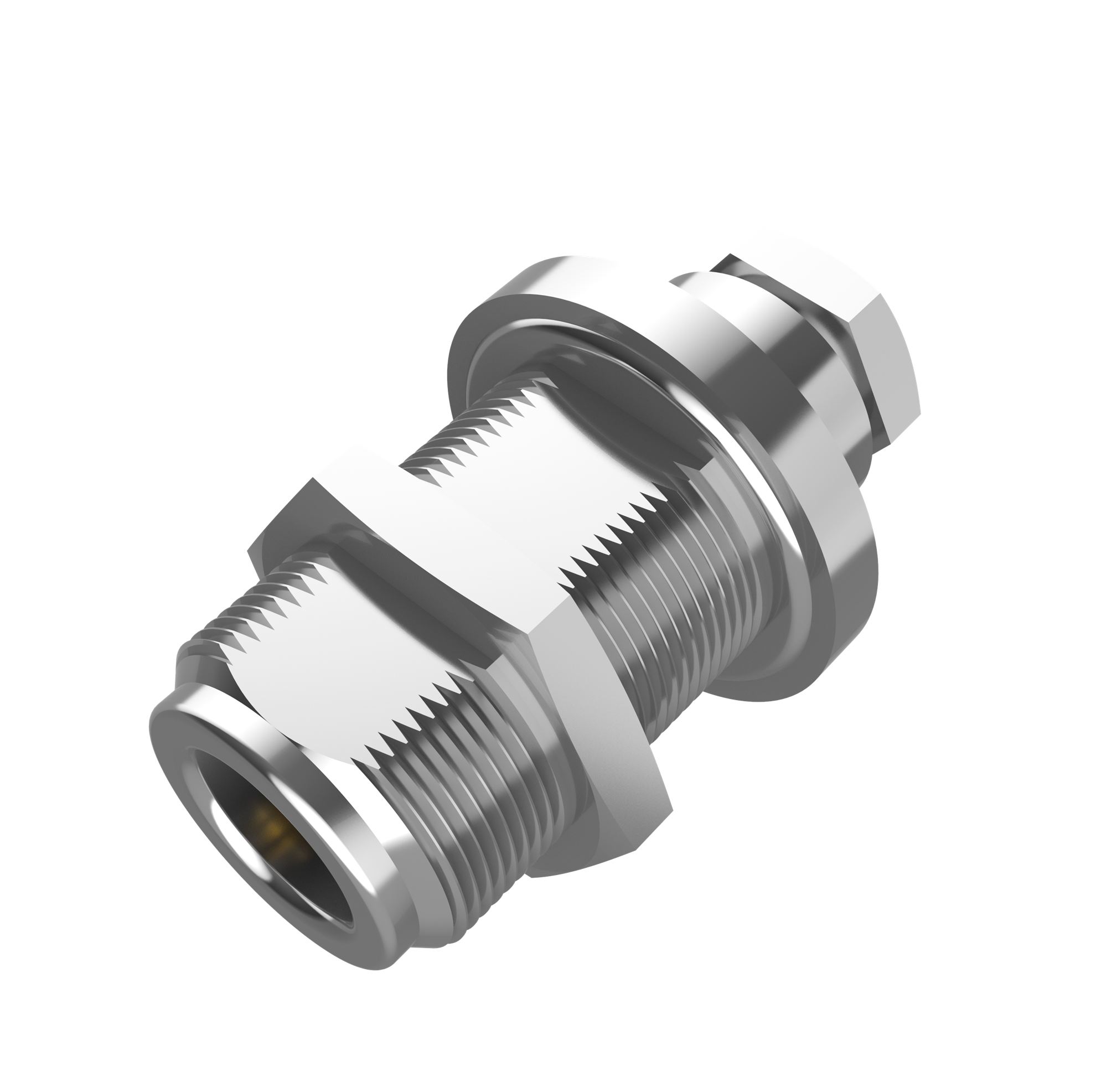

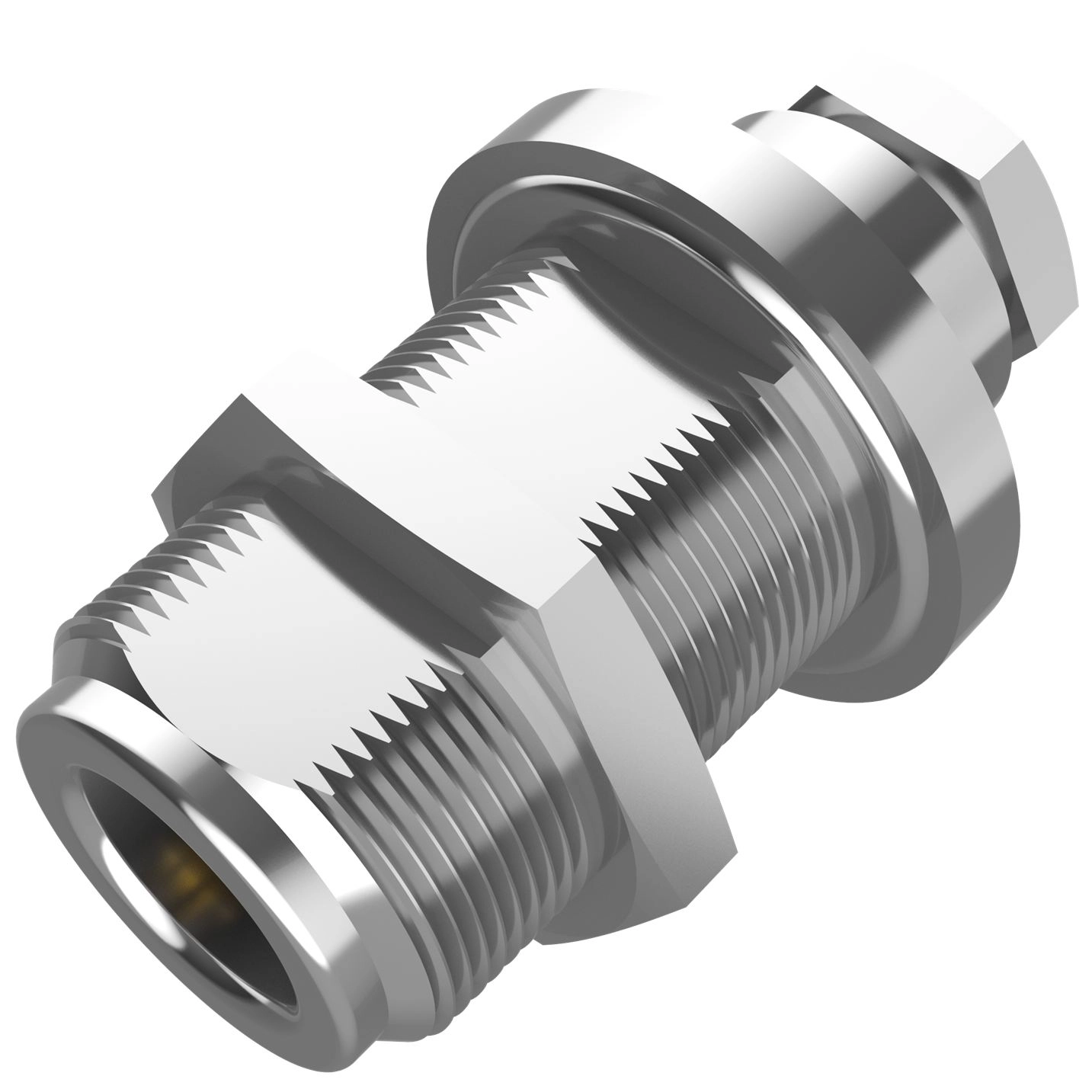

N Connector Jack Clamping Straight For RG142 Coaxial Cable

N Connector Jack Clamping Straight For RG142 Coaxial Cable

  • 20-236

  • 87-5061-212-01

  • Female

  • Straight

  • Clamping

  • Crimping

  • RG142

  • 87-5061-212-01.pdf

  • 87-5061-212-01.stp

Availability:
Quantity:
Inquire Add to Basket

Body   PlatingTri-metal
Body MaterialBrass
Cable Type -
Contact PlatingGold
Contact MaterialBeryllium   copper
Contact TerminationCrimping
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)18
GenderJack
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Size CategoryStandard
Temperature Range-65   -165 °C
Termination StyleCrimping
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
