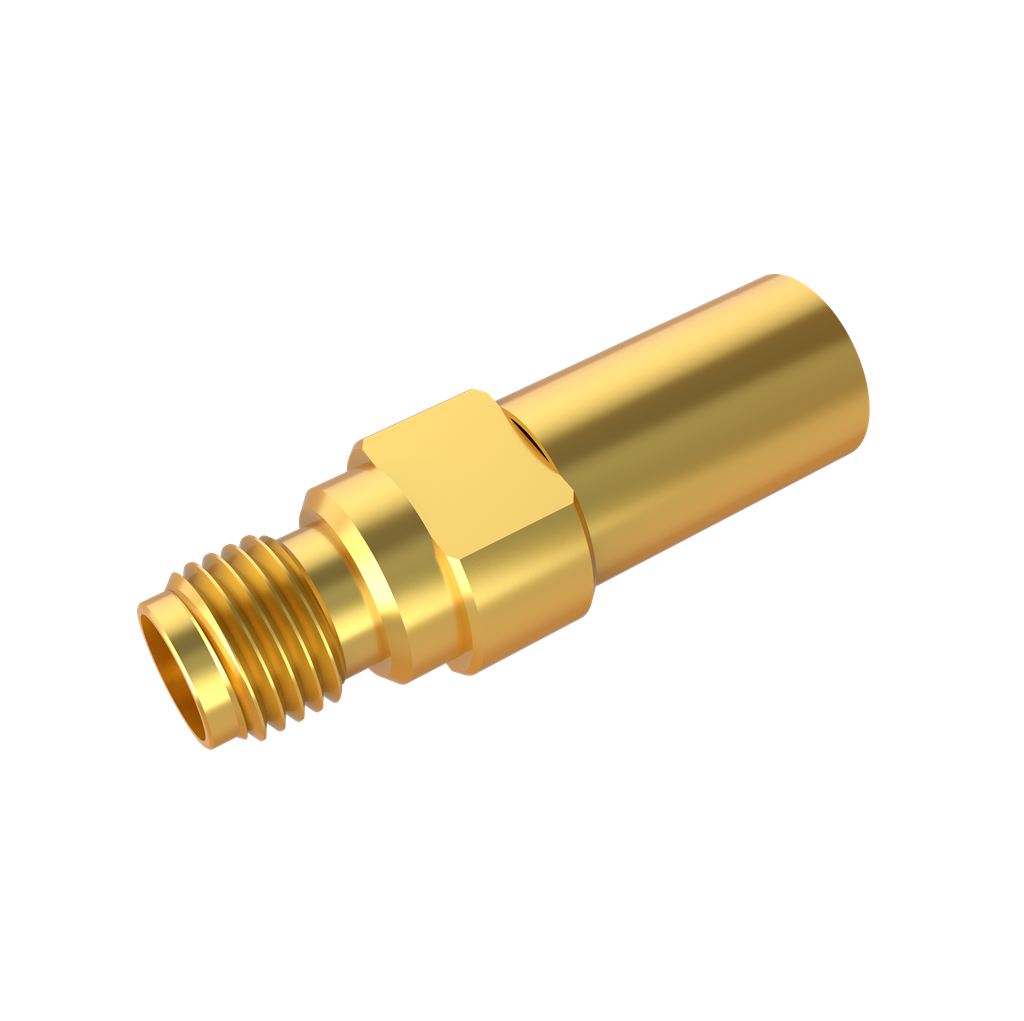

SMA Connector Jack Crimping For LMR240 Coaxial Cable
You are here: Home » Products » RF Connector » SMA RF Connector » SMA Connector Jack Crimping For LMR240 Coaxial Cable
Share to:

SMA Connector Jack Crimping For LMR240 Coaxial Cable

LenoRF's SMA coaxial connectors are high-quality and operate well. These screw-on locking connectors with a fixed maximum torque provide high reliability, extended service life, excellent mechanical stability, and superb electrical qualities. Excellent frequency ranges up to 18 GHz and 30 dB return loss are possible thanks to the butted outer contact. SMA connectors are utilized in RF applications such as telecommunications and mobile communication, as well as test and measurement instruments and equipment.
  • 89-5061-121-01
  • Female
  • Straight
  • Crimping
  • Crimping
  • LMR240
  • 89-5061-121-01.pdf
  • 89-5061-121-01.stp
Availability:
Quantity:
Body   PlatingGold
Body MaterialBrass
Cable Type LMR240
Contact PlatingGold
Contact MaterialBrass
Contact TerminationCrimping
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)12.4
GenderJack
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Panel Mounting FeatureN/A
Size CategorySubminiature
Temperature Range-65   -165 °C
Termination StyleCrimping/Solder
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
