Overview
An RF adaptor (Radio Frequency adapter) is a component used to connect two RF connectors or interfaces - either of different types or the same type. It enables the transmission of high-frequency signals with minimal loss or interference, and is typically used in the following applications: railway communications and signaling systems,MRI, CT, and ultrasound imaging devices,in-vehicle infotainment and connectivity systems .
Application
Connecting antennas to RF equipment
Linking test equipment (like spectrum analyzers or signal generators) to DUTs (devices under test)
Integrating components in RF communication systems (e.g., Wi-Fi, LTE, GPS, IoT modules)
railway communications and signaling systems
MRI, CT, and ultrasound imaging devices
in-vehicle infotainment and connectivity systems
Connector 1 Type:
SMA
Connector Feature:
Frequency Range:DC–18 GHz (up to 26.5 GHz high-end)
Impedance:50 OHMS
Power Handling:Medium
Coupling Mechanism:Threaded
Durability (mating cycles):500
Typical Applications:General RF, telecom, test
Size Category:Small
Connector 2 Type:
BNC
Connector Feature:
Frequency Range:DC – 4 GHz
Impedance:50 OHMS /75 OHMS
Power Handling:Medium
Coupling Mechanism:Bayonet Durability (mating cycles):500
Typical Applications:Broadcast, test, lab Size Category:Medium
Specification

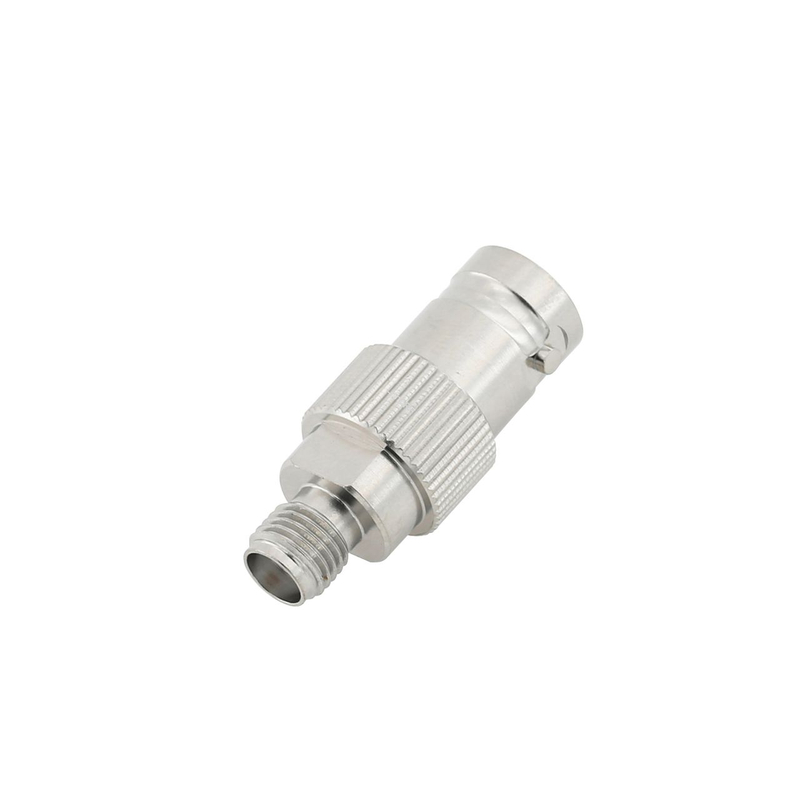

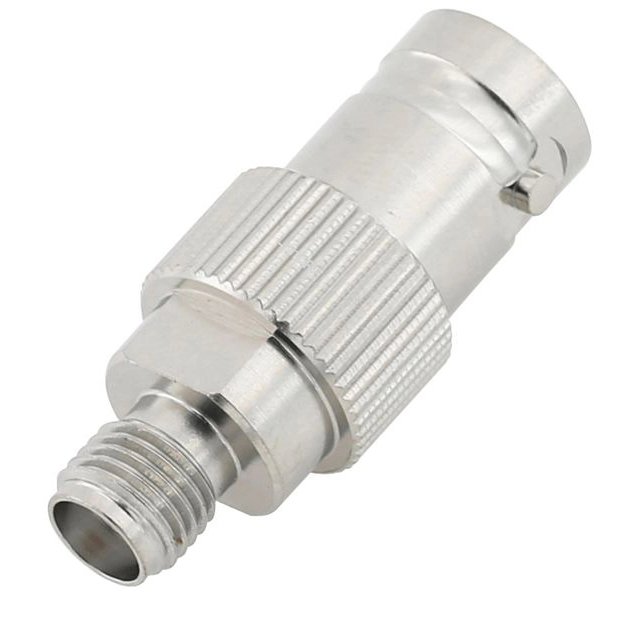

| Connector 1 type | SMA Connector |
| Connector 2 type | BNC Connector |
| Type Of Adapter | Between Series |
| Body Finish | Tri-metal |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Coupling Mechanism | Threaded |
| HS Code | 8536909000 |
| Frequency (Max GHz) | 4 |
| Impedance (Ohms) | 50 |
| Orientation | Straight |
| Temperature Range | -65 ~165 ° C |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What is impedance, and why is 50 Ω or 75 Ω important?
Impedance matching prevents signal reflection and power loss. 50 Ω: Standard for RF communication, test equipment, aerospace, defense. 75 Ω: Standard for broadcast, video, and cable TV applications.
What materials are RF connectors made of?
Body: Brass, stainless steel, or beryllium copper (with nickel, gold, or silver plating). Insulator: PTFE, PE, or advanced low-loss dielectrics. Contacts: Gold-plated brass or beryllium copper for low resistance and durability.
Are RF connectors weatherproof?
Some RF connectors are designed with gaskets and sealing (e.g., N-type, 4.3-10) for outdoor telecom, antennas, and harsh environments. Indoor lab connectors (e.g., SMA, BNC) are usually not weatherproof unless specified.
What’s the difference between male and female RF connectors?
Male: Has a center pin and usually an outer thread or bayonet. Female: Has a receptacle (socket) for the center pin and matching thread. Some connectors (like SMA) can be confusing because “reverse polarity” (RP-SMA) swaps pin/socket configuration.
