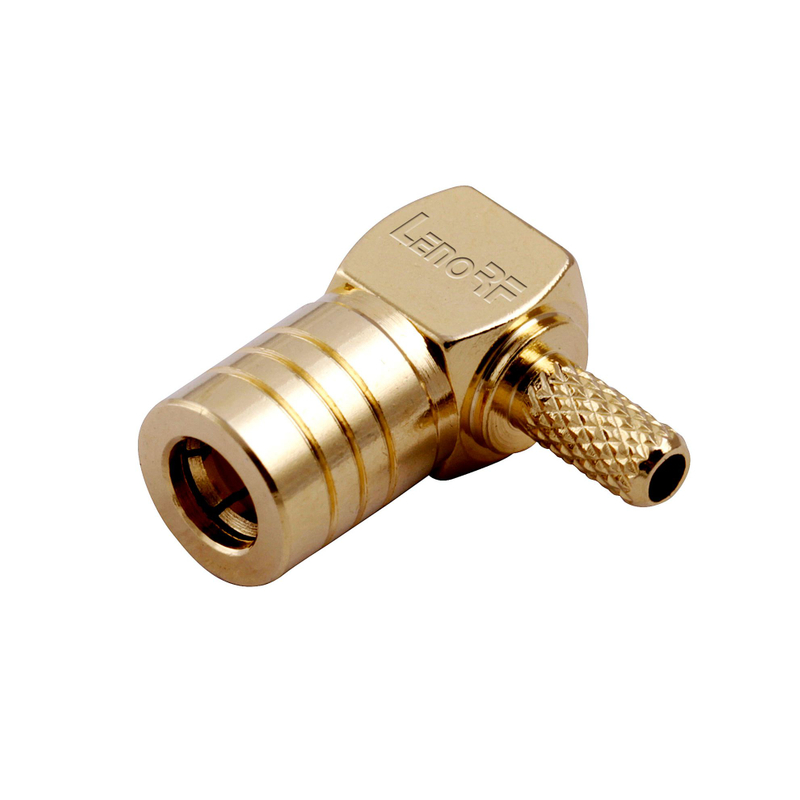

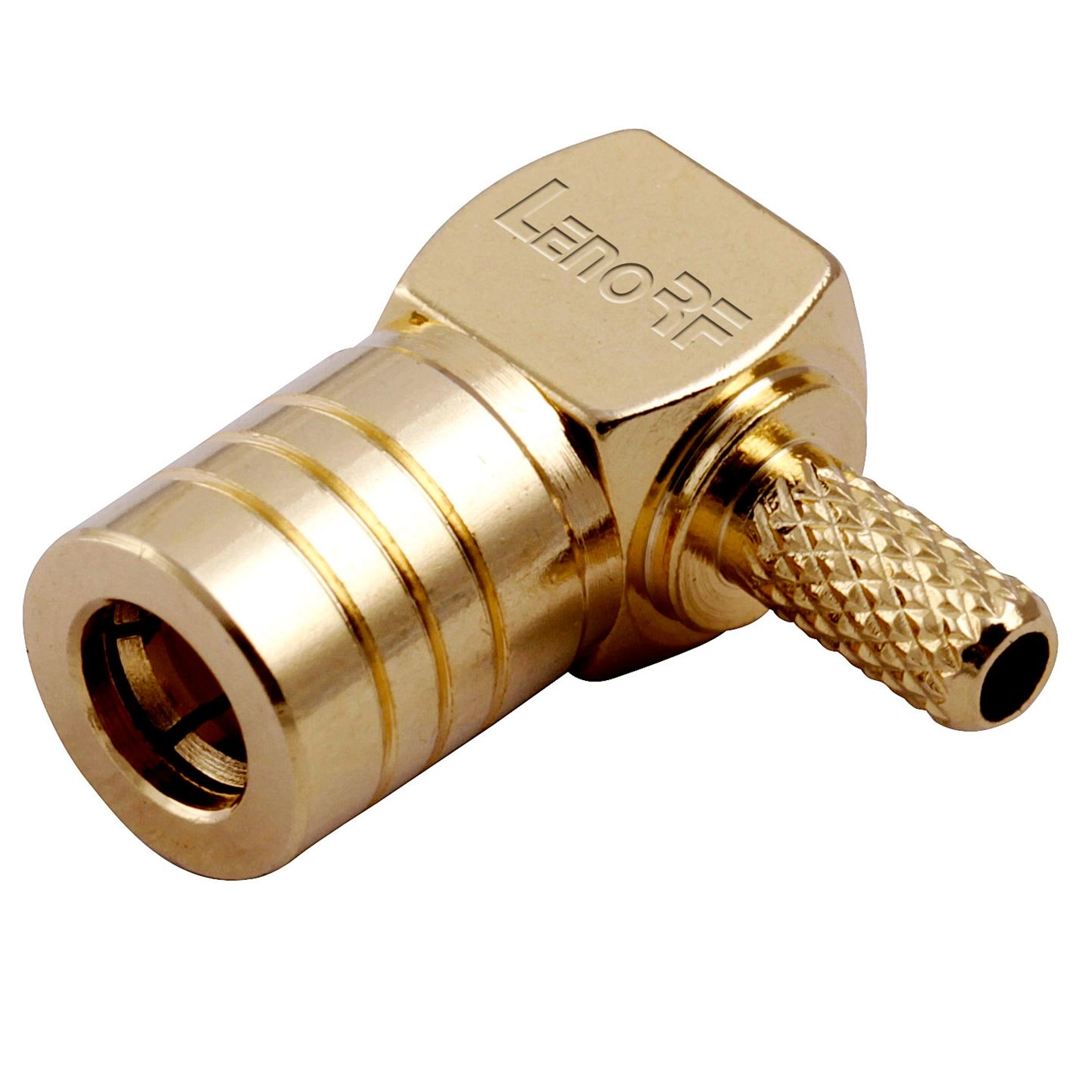

Overview
The SMB interface features a snap-on coupling mechanism and is available in 50 ohm configurations. It meets the requirements of MIL-C-39012 and complies with MIL-STD-348 standards. SMB connectors provide broadband performance with low reflection from DC to 4 GHz, with extended capability up to 10 GHz for application RF/microwave test benches and calibration equipment,network analyzers, spectrum analyzers, and oscilloscopes . They are offered in various materials, including die-cast options in non-critical areas, delivering a reliable yet cost-effective solution.
Features
Available with various plating options, including nickel, gold, and tin-lead.
Snap-on mating enables quick connection and disconnection, reducing installation time.
SMB PCB slide-on plugs and jacks allow easy board-to-board mounting with minimal insertion force.
Applications
Base Stations
Instrumentation
Radio Boards
Broadband
network analyzers, spectrum analyzers, and oscilloscopes
RF/microwave test benches and calibration equipment
missile guidance, drones, and satellite payload systems
Specification
Cable Type | RG174,RG316 |
| Body Plating | Gold |
| Body Material | Brass |
| Contact Plating | Gold |
| Contact Material | Phosphor bronze |
| Insulator Material | PTFE |
| Contact Termination | Crimp |
| Coupling Mechanism | Push-on |
HS Code | 8636909000 |
Frequency (Max GHz) | 4 |
Gender | Female |
Impedance (Ohms) | 50 |
Size Category | Miniature |
Orientation | Straight |
Temperature Range | -65 to 165 ° C |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348 IEC 60169-10 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What is VSWR, and why does it matter?
VSWR (Voltage Standing Wave Ratio) indicates signal reflection. Ideal: 1.0 (perfect match). Lower VSWR means less signal loss and distortion.
What are typical applications of RF connectors?
Telecom (5G, LTE, satellite) Aerospace & defense (radar, avionics, secure comms) Test & measurement (network/spectrum analyzers) Broadcast & video distribution Automotive radar and IoT devices Medical imaging & equipment
What is the difference between RF connectors and coaxial connectors?
They are often used interchangeably. However: Coaxial connector refers to the physical design (shielded cylindrical form). RF connector emphasizes its use in radio-frequency applications. Most RF connectors are coaxial.
What is “reverse polarity” (RP-SMA, RP-TNC)?
Reverse polarity means the gender of the center pin is swapped while keeping the outer body style unchanged. It was introduced to comply with regulatory requirements in Wi-Fi devices and to prevent connection with standard SMA/TNC.
