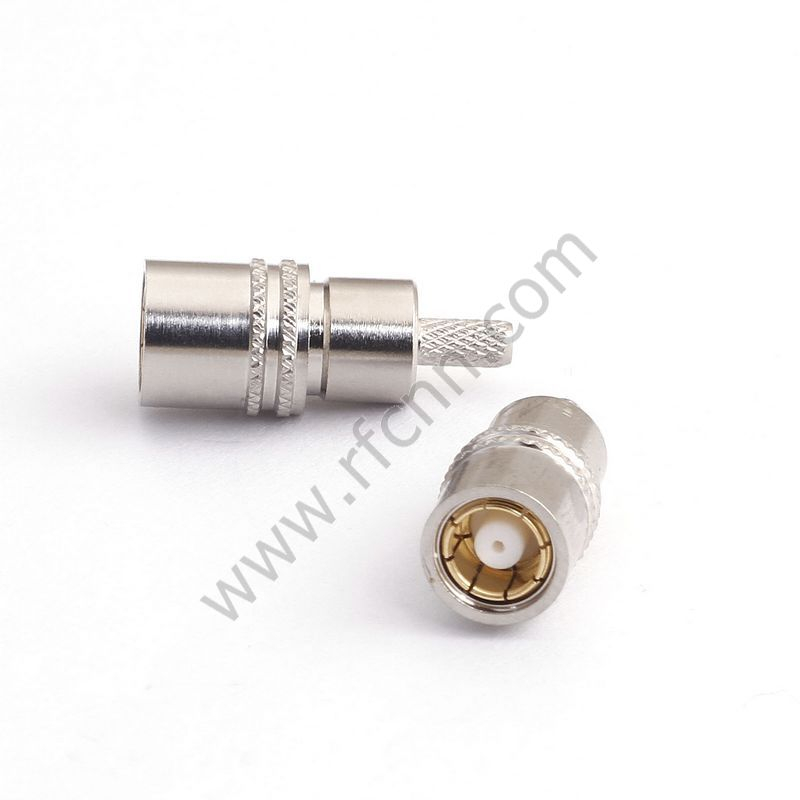

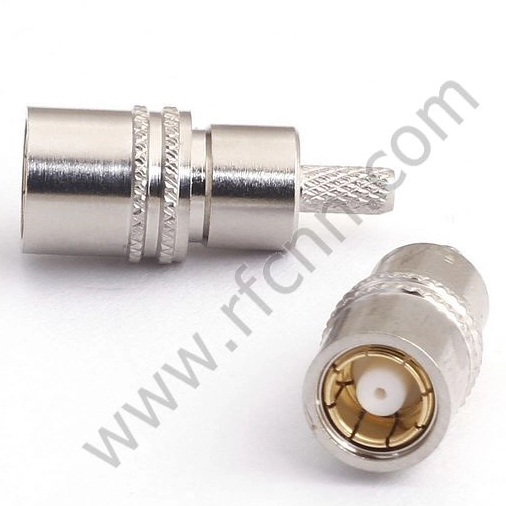

SMZ Crimp Female for RG178 RF Connector

"Our SMZ RF connector is of exceptional quality and value. The highest frequency is 6.5 GHz, and we utilize brass, phosphor bronze, or beryllium copper for the center contact with silver or gold plating and brass for the body with silver or tri-metal plating to provide high-quality electric performance and a reliable mechanism via snap on coupling.
The SMZ connector is compatible with a wide range of coaxial cables, including those with low loss.
The SMZ connector complies with RoHS and REACH regulations and is produced to the MIL-C-39012 standard. It is suitable for a wide variety of applications, including antennas, base stations, instruments, satellite systems, WLAN, radar systems, broadcast, and surge protection."
  • SMZ221-178

  • Female

  • Straight

  • Crimping

  • Crimping

  • RG178

Availability:
Quantity:

  • Part No  SMZ221-178
    Description SMZ Crimp Female for RG178 RF Connector
    Connector Series SMZ
    Connector TypeFemale
    Contact Termination Solder
    Shield Termination Crimp
    Impedance 50 Ohm
    Mounting Type Free Hanging
    Cable Group RG178
    Fastening Type SNAP ON
    Frequency - Max DC-9.5GHz
    Body Material Brass
    Body Finish Gold
    Center Contact Material Brass
    Center Contact Finish Gold
    Dielectric Material Polytetrafluorethylene (PTFE)
    Voltage Rating 375V
    Working Temperature -65°C ~ 165°C

    Part Name: SMZ Crimp female RF Connector
    Material: Brass, Teflon, beryllium brass.
    Plating: Golden, silver, nickel, triple-metal

    We also make RF Connectors, Cable Assemblies, 7/16 DIN RF Connectors,
    N RF Connectors, FAKRA SMB RF Connectors, IPX RF Connectors,
    MCX RF Connectors, MMCX RF Connectors, SMA RF Connectors,
    SSMA RF Connectors, SMB RF Connectors, SSMB RF Connectors,
    SMC RF Connectors, SMZ RF Connectors, TNC RF Connectors,
    1.0/2.3 RF CONNECTORS, 1.6/5.6 RF Connectors, BNC RF Connectors,
    F RF Connectors, FME RF Connectors, UHF RF Connectors, Mini-UHF RF Connectors, RF ADAPTER, Attenuator of RF Connectors, Terminator of RF Connectors, Surge protector, Microwave Device-Cavity Power Dividing Coupler, Microstrip Power Dividing, Combiner, Bridge.
