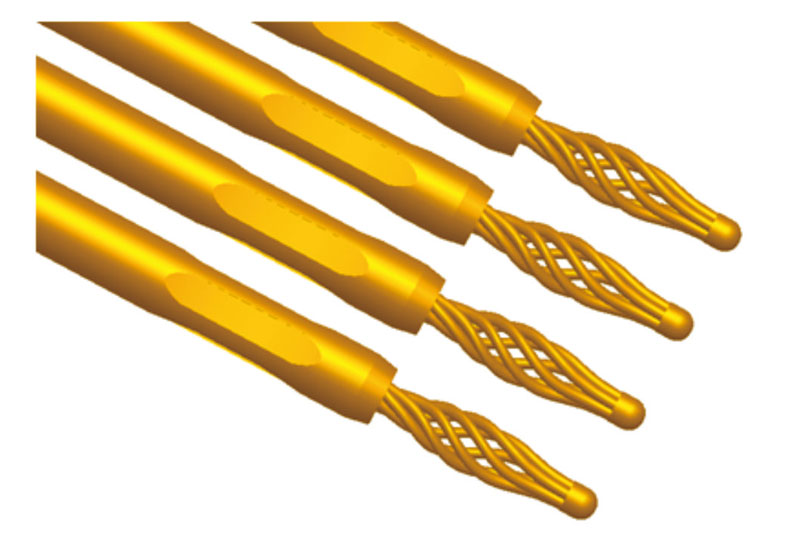

Twisted Spring Contacts

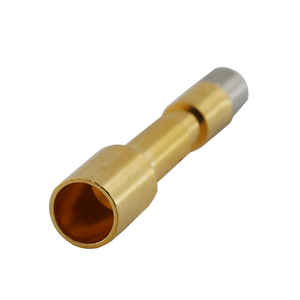

  • Hyperboloid spring contact
  • Twisted Spring Contacts

Product Short Description:

Twisted Spring Contacts


Product Description

Twisted Spring Contacts benefits:

.Over 1000 mating cycles

.Low,stable plug and pull force

.High shock and vibration resistance.

.Low contact resistance

.Operarting temperature range from -65 to 150°C

.Discontinuity duration less than 1 µs

Body material: copper alloy

Surface treatment: gold or sliver.

 Item
项目
Contact size
接触件尺寸
Barrel AWG
后套
Contact resistance
-low level mΩ
接触电阻
Rated test
current A
额定测试电流
Insertion force
-gauge(max) N
插入力(最大)
Extraction force
-gauge(min) N
拔出力(最小)
Centi-pin
厘针
0.635±0.013 24/26 20 3.0 2 0.6
Mili=pin
毫针
0.450±0.013 28 31 1.5 1.5 0.4
Micro-pin
微针
0.254±0.010 30 60 0.5 1 0.3
