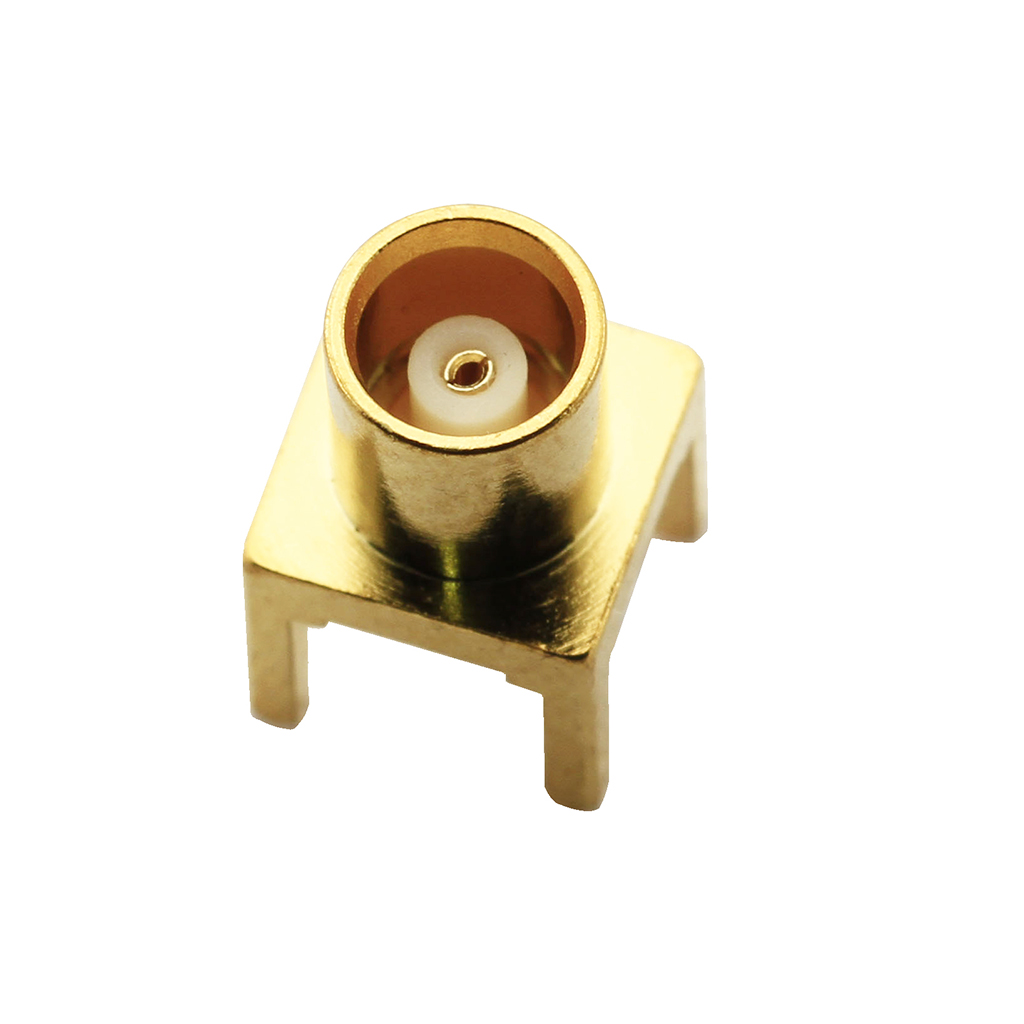

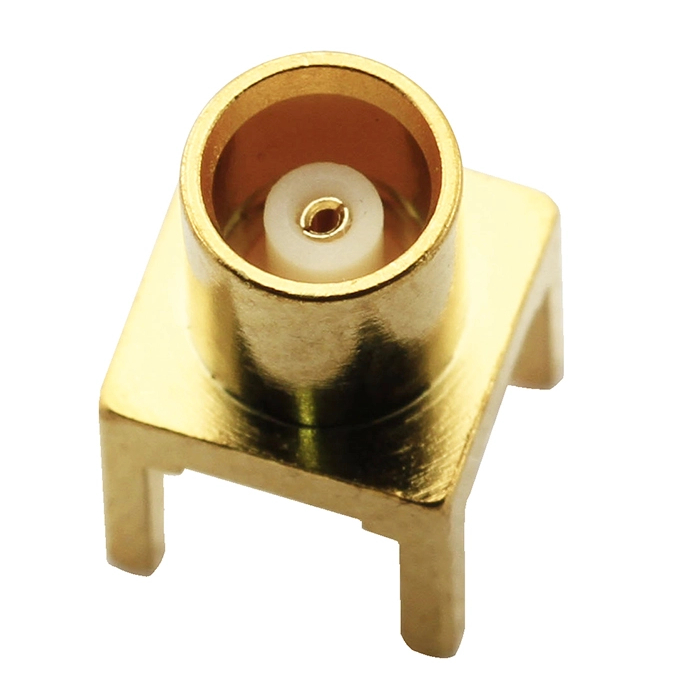

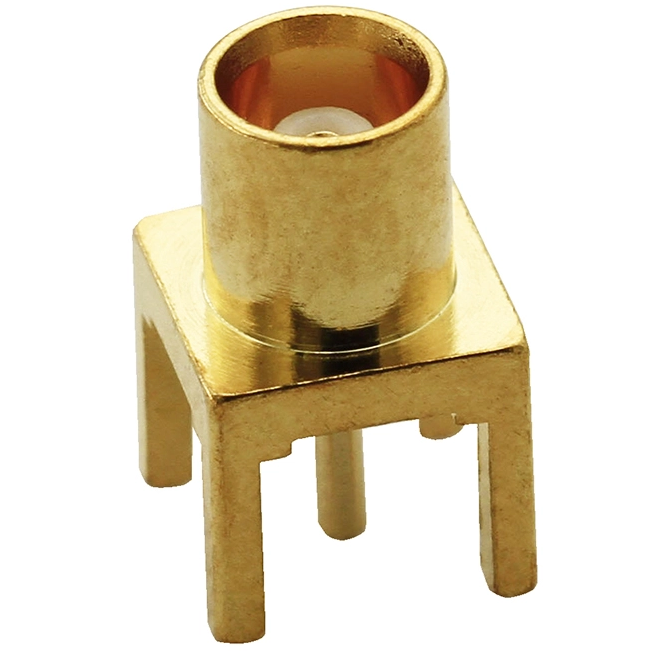

MCX Jack Connector Straight Solder For PCB Through Hole

A snap-on locking mechanism is used on MCX 50 OHMS coaxial connectors. They're mostly used in fixed and wireless communication systems with RF cable connections up to 6 GHz. MCX connectors provide a high level of dependability, a long service life, and are simple to install. The PCB connectors are available in tape and reel packaging for automated board assembly, as well as blister packaging. For medical and aeronautical applications, we also provide a non-magnetic alternative.
  • MCXFSTJ.A

  • MCXFSTJ.A

  • Female

  • Straight

  • PCB Hole through

  • Crimping

  • N/A

Availability:
Quantity:

Materials&Electroplating
ConductBrass/   Silver or Golden Plating
InsulatorPTFE
BodyBrass   /Ternary or nickel or silver
Other PartsBrass/   Nickel Plating
Electric Performance
Impedance50   OHMS
Frequency Range0-3GHz
VSWR≤1.30
Rating Voltage500V
Environmental
Temperature Rating-65°C   to +165°C
Corrosion (Salt Spray)MIL-STD-202,   Method 101, Condition B
VibrationMIL-STD-202,   Method 204, Condition D, 20 Gs
ShockMIL-STD-202,   Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202,   Method 107. Cond. B, -65°C to +125°C
Moisture ResistanceMIL-STD-202,   Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202,   Method 105, Condition C, 70k Ft.


FAQ

1. Sample delivery time

Regular model need 15 days, some complex connectors need 25 days


2. Sample Fee

The most of RF connector is CNC parts,don't need to make mold.

Through, each part need be tuning the CNC, usually one sample need 200 USD cost.

The fee will return after 5K bulk order


3. The quarantee

Brass RF connector is one year, the stainless steel connector is three year.

Also, depend on the material of contact, Beryllium contact have better lifetime.


4. ROHS&REACH

Our product fully compliance with ROHS&REACH.


5.Does LENORF offer military class product

Yes. We honor to offer military product with super stable quality.


6. MOQ

Regular connector: 500PCS.

Adaptor:100PCS

Military connector:100PCS


Application:

Telecommunication,Military,Broadband,Industry,Medical,5G,Radar
