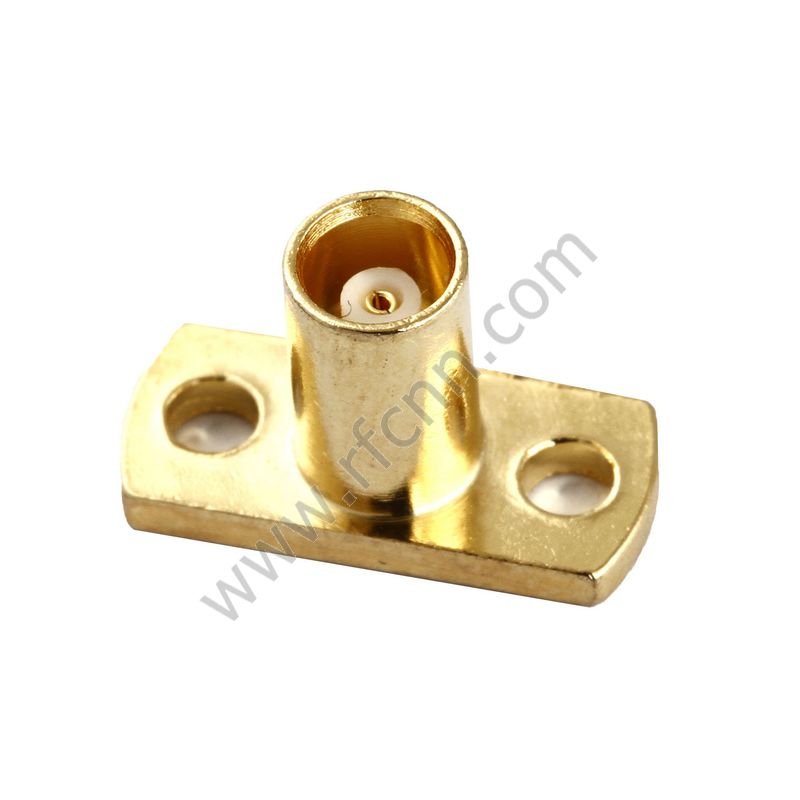

MCX Female Straight Flange Mount For Microstrip

MCX 50 OHMS coaxial connectors include a snap-on locking mechanism. They're typically employed in fixed and wireless communication systems that utilise RF cable connections with frequencies up to 6 GHz. MCX connectors are distinguished for their long service life, reliability, and ease of installation. The PCB connectors are available in both tape and reel packaging for automated board assembly and blister packaging for manual board assembly. Medical and aviation applications can also use non-magnetic solutions.
  • MCX207

  • Male

  • Straight

  • 2 Hole Flange

  • Crimping

  • N/A

Availability:
Quantity:
  • Part No MCX207
    Description MCX Female Rectangle Flange  RF Connector
    Connector Series MCX
    Connector Type female
    Contact Termination Solder
    Shield Termination
    Impedance 50 Ohm
    Mounting Type Rectange Flange
    Cable Group -
    Fastening Type Snap On
    Frequency - Max DC-18GHz
    Body Material Brass
    Body Finish Gold
    Center Contact Material Brass
    Center Contact Finish Gold
    Dielectric Material Polytetrafluorethylene (PTFE)
    Voltage Rating 375V
    Working Temperature -65°C ~ 165°C
