Overview

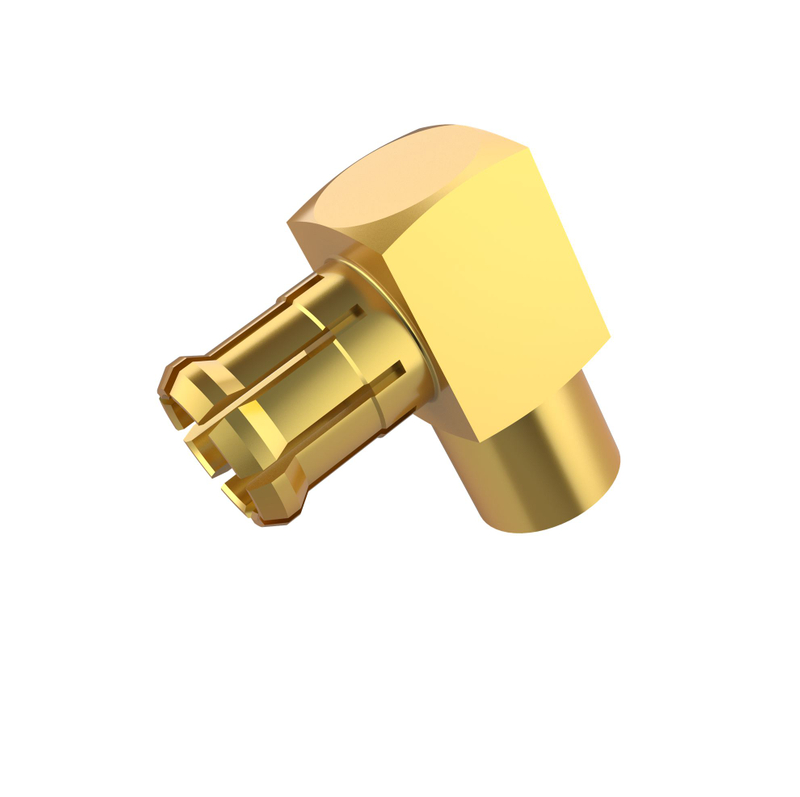

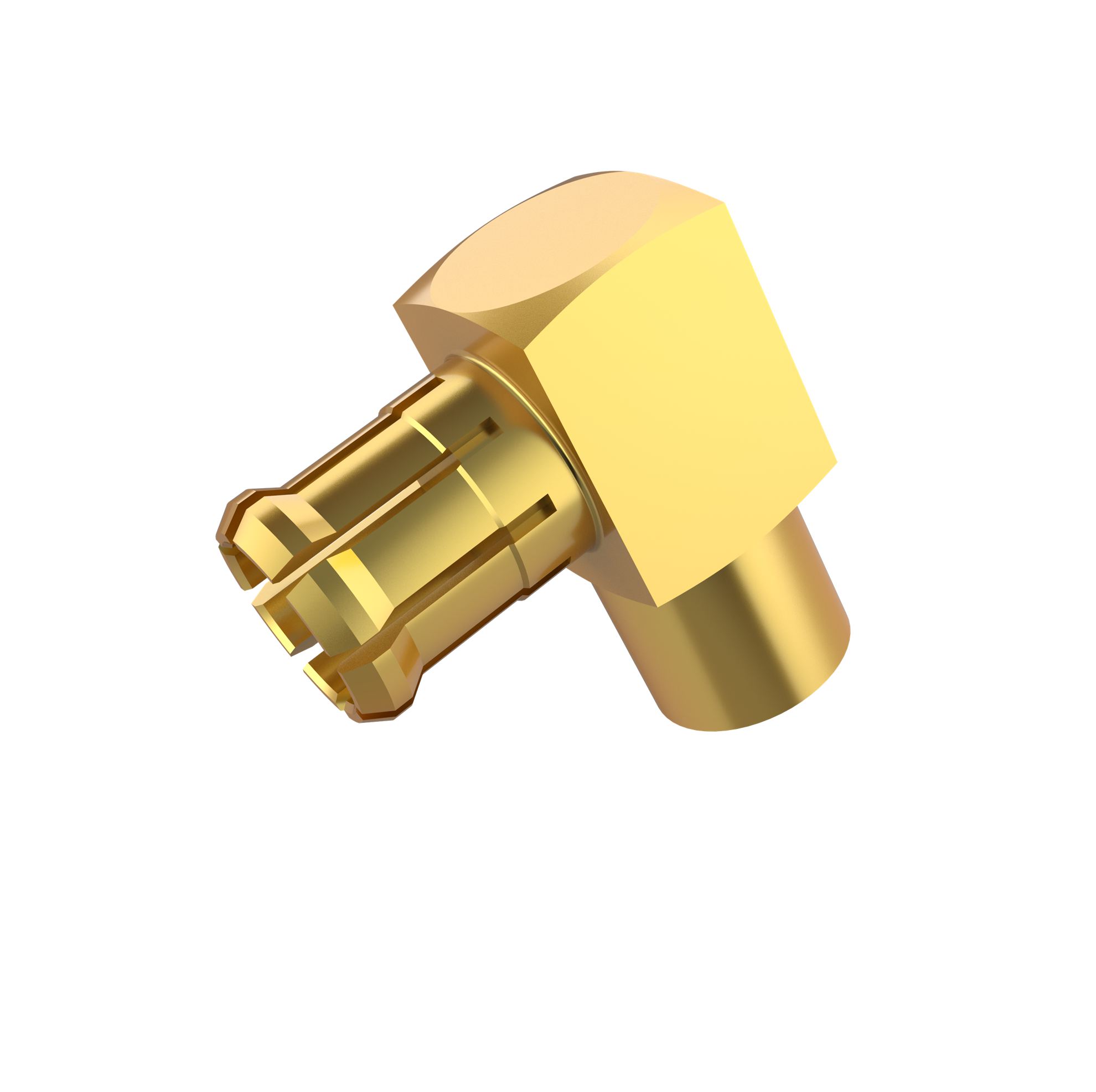

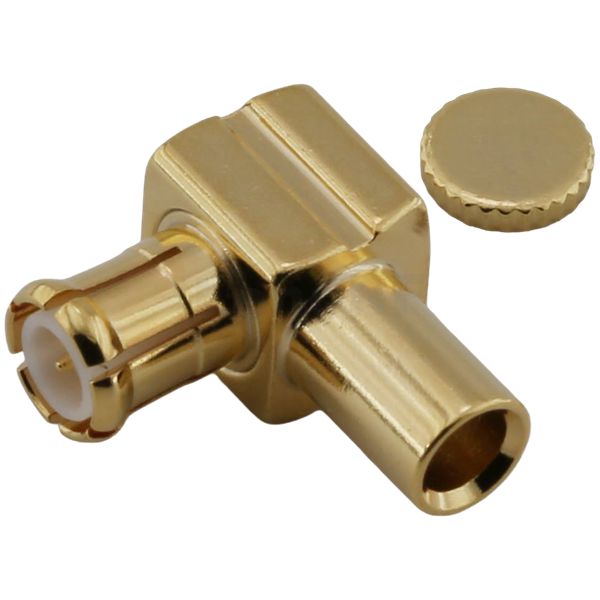

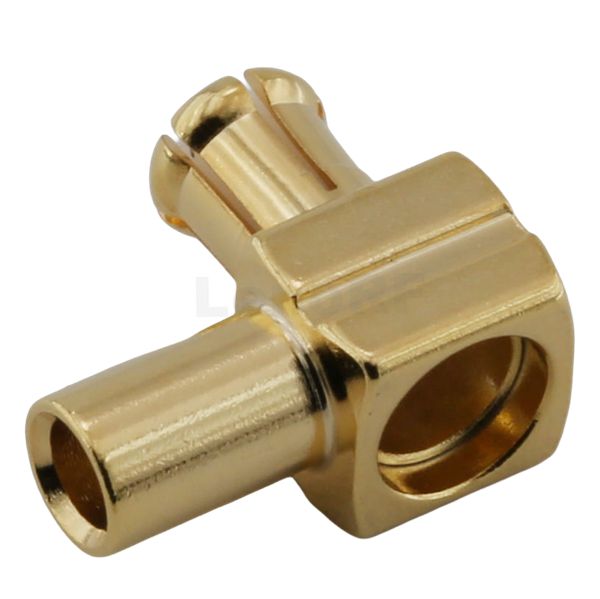

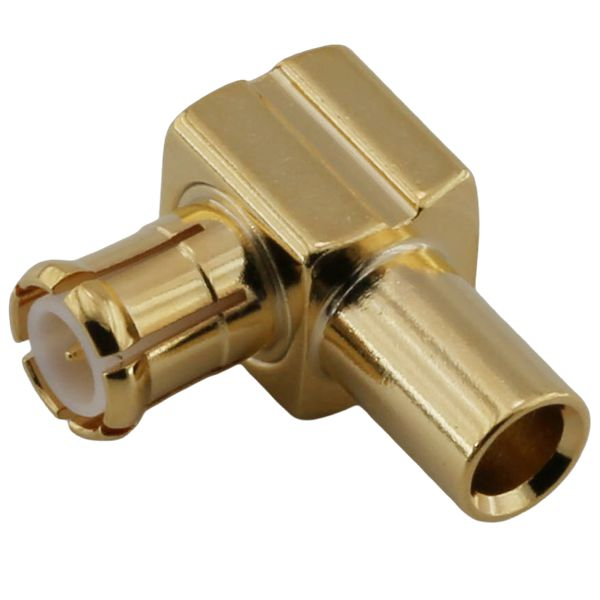

The MCX connector series offers 50 ohm and 75 ohm options with broadband performance from DC up to 6 GHz. Designed for quick, reliable connections, MCX connectors feature a secure snap-on/snap-off coupling mechanism that simplifies assembly and disassembly. Introduced in the 1980s, these compact connectors provide a space-saving solution for high-frequency applications while maintaining signal integrity. MCX connectors comply with the European CECC 22220 standard, ensuring quality and consistency across applications. Ideal for RF, microwave, robotics and industrial automation requiring RF links,smart meters and remote monitoring devices and data transmission systems, the MCX series combines durability, ease of use, and versatile electrical performance in a small form factor.
Features
Offers broadband performance with low reflection from DC to 6GHz.
Snap-on mating enables quick connection and disconnection, reducing installation time.
Compatible with a variety of miniature RG flexible coaxial cables, including semi-rigid types, giving designers flexibility in system layout and manufacturing.
Available in both 50OHMS and 75OHMS configurations to suit different application requirements.
Applications
Telecom equipment
Broadcast
Instrumentation
Test and measurement equipment
smart meters and remote monitoring devices
robotics and industrial automation requiring RF links
wireless sensor networks and IoT gateways
Specification
Body Plating | Gold |
Body Material | Brass |
Cable Type | RG405,086 |
Contact Plating | Gold |
Contact Material | Phosphor bronze |
Contact Termination | Solder |
Coupling Mechanism | Push-on |
HS Code | 8536909000 |
Frequency (Max GHz) | 6 |
Gender | Male |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Size Category | Sub-miniature |
Temperature Range | -65 to 165 ° C |
Mating Cycles | 500 Min |
Interface Specification | CECC 22220 ,IEC-61169-36 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What is “reverse polarity” (RP-SMA, RP-TNC)?
Reverse polarity means the gender of the center pin is swapped while keeping the outer body style unchanged. It was introduced to comply with regulatory requirements in Wi-Fi devices and to prevent connection with standard SMA/TNC.
What’s the lifespan of an RF connector?
Connector durability is rated in mating cycles: General-purpose connectors (BNC, SMA): 500 cycles. Precision connectors (2.92 mm, 2.4 mm): 500 cycles or less. Rugged telecom connectors (N, 7/16 DIN): 500 cycles.
Can RF connectors be reused?
Yes, but performance degrades with wear. Precision connectors (used in test equipment) should be handled carefully—damage to threads or pins increases VSWR and insertion loss.
What’s the difference between threaded, bayonet, and push-on RF connectors?
Threaded (SMA, N, TNC): Secure, vibration-resistant. Bayonet (BNC): Quick connect/disconnect. Push-on (MCX, SMP): Ultra-fast, compact, used in high-density modules.
