MQ4 RF Connector – High-Performance Multi-Port Solution

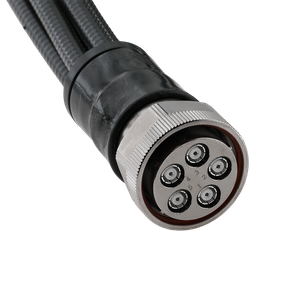

Upgrade your RF connectivity with the MQ5 RF Connector, designed for high-frequency applications with exceptional durability and performance. Featuring five interfaces and a robust mechanical structure, this connector is perfect for telecommunications, broadcasting, and industrial applications.
Key Features:
Versatile Interface Options: Equipped with 1 MQ4 screw connection and 4 high-quality 4.3-10 male connectors (50 Ω) per IEC 61169-54.
Wide Frequency Range: Supports DC to 4200 MHz, ensuring compatibility with various RF applications.
Superior Power Handling: Handles up to 0.22 kW @ DC to 2200 MHz and maintains high efficiency across multiple frequency bands.
Low Signal Loss & High Stability: Minimal insertion loss with excellent VSWR values (as low as 1.10) to enhance signal integrity.
Outstanding Intermodulation Performance: Achieves a passive intermodulation (IM3) rating of -155 dBc (max) and -160 dBc (typical), reducing signal interference.
Built for Durability:
Rugged Construction: Manufactured with Ag-plated Cu-alloy inner and outer conductors for excellent conductivity and corrosion resistance.
IP68 Protection: Water-resistant and dustproof, designed to perform in harsh environments.
Flexible & Resilient: Withstands bending with a minimum radius of 30 mm and high crush resistance of 18.4 N/mm.
RoHS Compliant: Fully compliant with international environmental standards.
Technical Specifications:
Cable Type: 1/4" Super Flexible
Length: Customized (tolerance: +40 mm / -25 mm)
Jacket Material: Durable PE outer jacket (black)
Temperature Range: Operates from -55°C to +85°C, making it ideal for extreme conditions.
Applications:
Wireless Communication Networks
Broadcast & Satellite Systems
Industrial RF Applications
Military & Defense Communications
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material—beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
