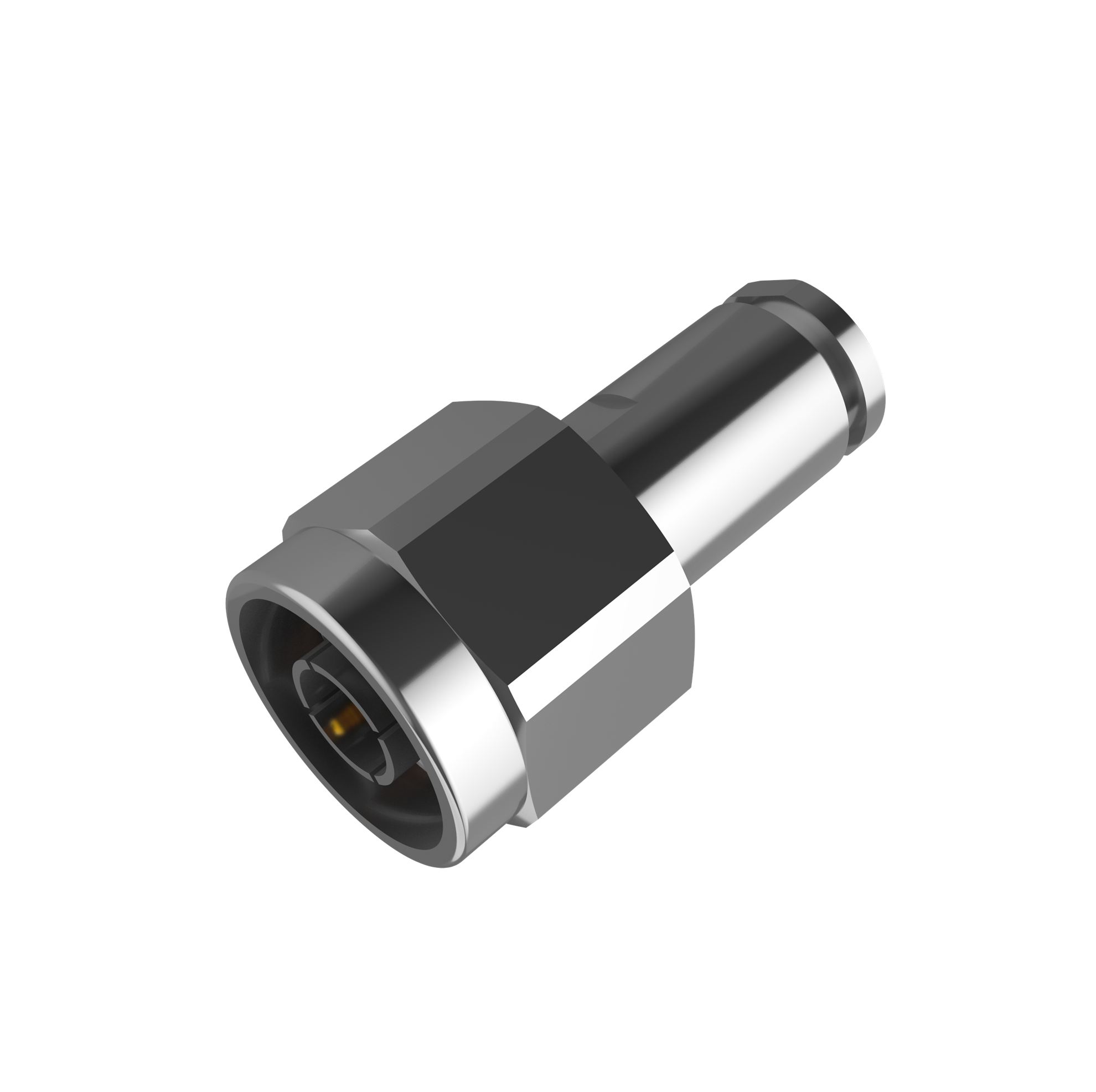

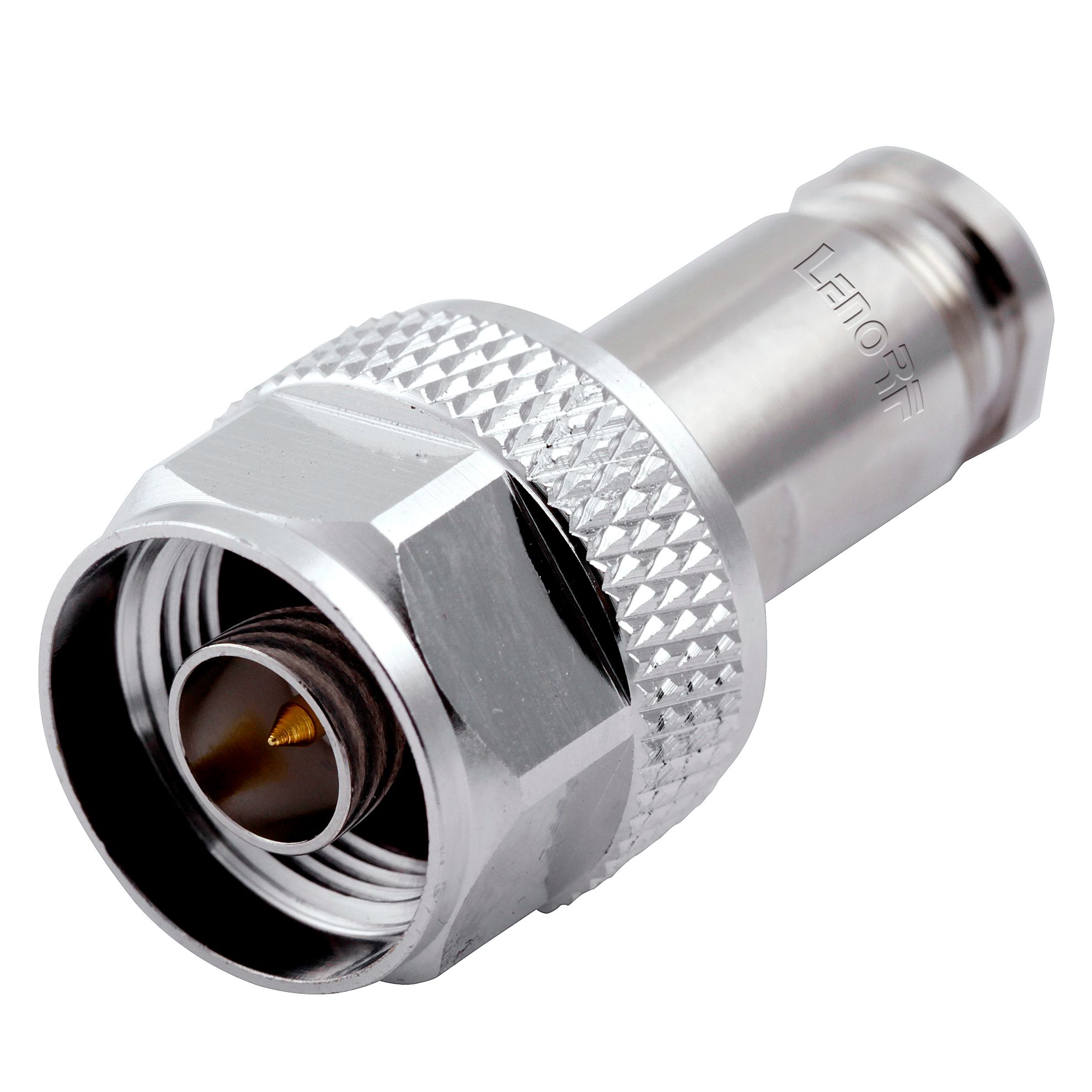

N Connector Plug Straight Clamping For LMR300 Cable

The N type connector is high-quality and cost-effective. To provide high-quality electric performance and a reliable mechanism using threaded coupling, we utilize brass, phosphor bronze, or beryllium copper for the center contact with silver, gold plating, and brass for the body with silver, tri-metal plating.
The N type connector is compatible with a wide range of coaxial cables, including low-loss cables.
Antennas, base stations, instrumentation, satellite systems, WLAN, radar systems, broadcast, and surge protection are just a few of the uses for the RoHS and REACH-compliant N-type RF connector, which is built to the MIL-C-39012 standard.
  • 20-701
  • 87-5161-222-01
  • Male
  • Straight
  • Clamping
  • Crimping
  • LMR300
  • 87-5161-222-01.pdf
  • 87-5161-222-01.stp
Availability:
Quantity:
Body   PlatingTri-metal
Body MaterialBrass
Cable Type -
Contact PlatingGold
Contact MaterialBeryllium   copper
Contact TerminationSoldering
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)18
GenderPlug
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Size CategoryStandard
Temperature Range-65   -165 °C
Termination StyleSolder
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
