Overview
LenoRF provides a comprehensive range of coaxial cable assemblies designed for radio frequency (RF) applications. These assemblies support all industry-standard coaxial cable types and are available with in-series (matching) or between-series (different) interfaces. Additionally, some configurations feature an unterminated or blunt-cut end on one side for flexible integration.They also offer different orientations, such as straight or right-angle, along with bulkhead mounting options.
With these diverse features and custom design capabilities, LenoRF's coaxial cable assemblies meet the demanding requirements of various industries and applications:robotics and industrial automation requiring RF links,smart meters and remote monitoring devices.
Cable Types
Micro-Coax Cable
Micro coaxial cables offer high reliability and sensitivity, with an ultra-small OD, ideal for tight-space applications.
Flexible Cable
Flexible cables feature a stranded conductor for flexing or a solid conductor for low-loss performance. They offer double shielding and various RF connectors, ideal for high-speed data and video transmission.
Conformable Semi-Rigid Cable
Conformable cables are flexible, hand-formable alternatives to rigid coaxials, requiring no special tools. They support various RF connectors and ensure no signal loss from bending.
Hand-Formable 0.047 inch
Hand-Formable 0.085 inch
Hand-Formable 0.141 inch
Hand-Formable 0.250 inch
Semi-Rigid Cable
RF semi-rigid cables are semi-flexible, high-performance coaxial cables with fixed dimensions, ideal for stable, low-loss signal transmission in demanding applications.
RG405 RG402 RG401
Semi-Rigid 0.047 inch
Semi-Rigid 0.086 inch
Semi-Rigid 0.141 inch
Applications:
Telecommunications (cell towers, wireless networks)
Broadcasting (radio, TV transmission)
Aerospace & Defense (radar, satellite communications)
Medical Equipment (MRI machines, diagnostic devices)
Industrial & IoT (RFID, automation systems)
robotics and industrial automation requiring RF links
robotics and industrial automation requiring RF links
robotics and industrial automation requiring RF links
Key Features:
High stability
100% tested for reliability
Superior electrical performance
Precision connectors
Extended mating cycles
Heat-resistant and flame-retardant design
Specification

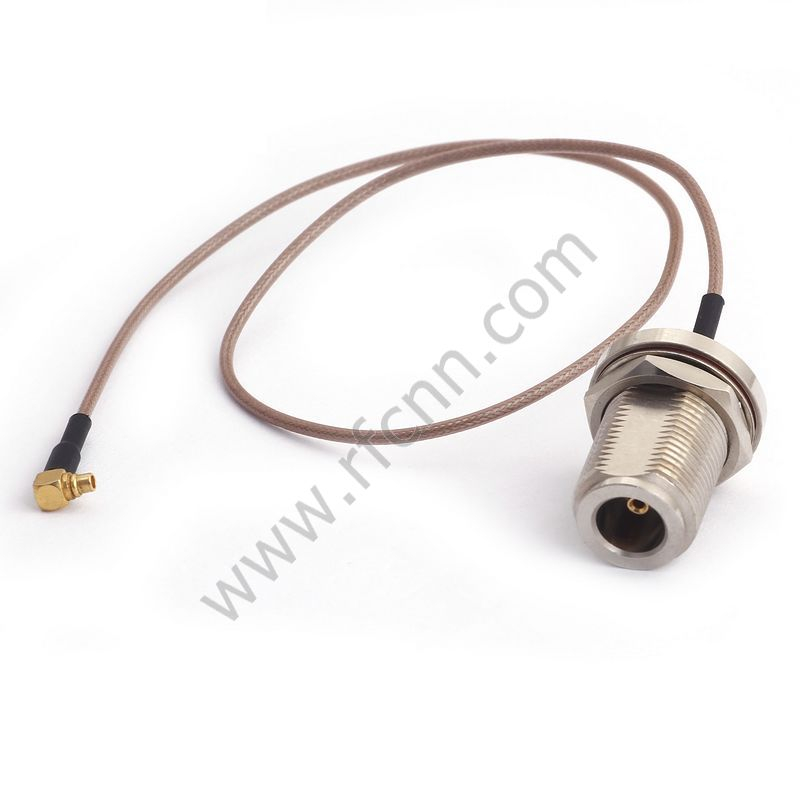

Connector |
|
Side A | N Female |
Side B | MMCX Male |
|
|
| Cable | RG174 |
| Impedance | 50 Ohms |
Frequency Range
| 0~ 5.8 GHz |
| Working Temperature | -55 °C ~ 125 °C |
| RoHS | Yes |
| Reach | Yes |
| H.S. CODE | 85444200 |
| Package | 1 PC/bag |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What is impedance, and why is 50 Ω or 75 Ω important?
Impedance matching prevents signal reflection and power loss. 50 Ω: Standard for RF communication, test equipment, aerospace, defense. 75 Ω: Standard for broadcast, video, and cable TV applications.
What materials are RF connectors made of?
Body: Brass, stainless steel, or beryllium copper (with nickel, gold, or silver plating). Insulator: PTFE, PE, or advanced low-loss dielectrics. Contacts: Gold-plated brass or beryllium copper for low resistance and durability.
Are RF connectors weatherproof?
Some RF connectors are designed with gaskets and sealing (e.g., N-type, 4.3-10) for outdoor telecom, antennas, and harsh environments. Indoor lab connectors (e.g., SMA, BNC) are usually not weatherproof unless specified.
What’s the difference between male and female RF connectors?
Male: Has a center pin and usually an outer thread or bayonet. Female: Has a receptacle (socket) for the center pin and matching thread. Some connectors (like SMA) can be confusing because “reverse polarity” (RP-SMA) swaps pin/socket configuration.
Each cable undergoes rigorous individual testing and is delivered with a comprehensive test report.
