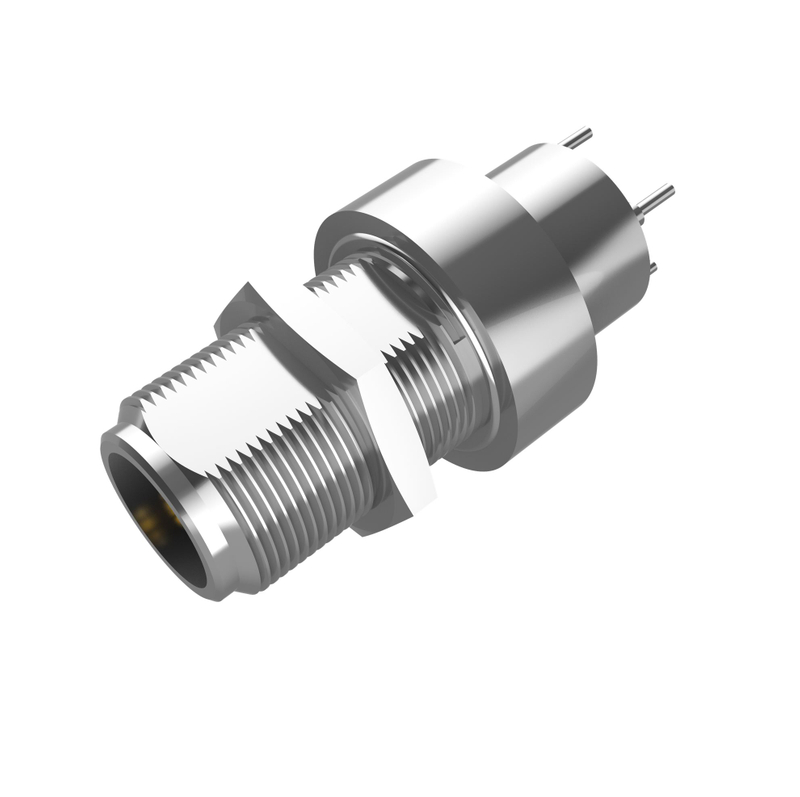

N Connectors Jack Bulkhead Straight For PCB Through Hole

The N type connector is high-quality and cost-effective. To provide high-quality electric performance and a reliable mechanism using threaded coupling, we utilize brass, phosphor bronze, or beryllium copper for the center contact with silver, gold plating, and brass for the body with silver, tri-metal plating.
The N type connector is compatible with a wide range of coaxial cables, including low-loss cables.
Antennas, base stations, instrumentation, satellite systems, WLAN, radar systems, broadcast, and surge protection are just a few of the uses for the RoHS and REACH-compliant N-type RF connector, which is built to the MIL-C-39012 standard.
  • 87-5061-031-02

  • Female

  • Straight

  • PCB Hole through

  • Soldering

  • N/A

  • 87-5061-031-02.pdf

  • 87-5061-031-02.stp

Availability:
Quantity:

Body   PlatingTri-metal
Body MaterialBrass
Cable Type -
Contact PlatingGold
Contact MaterialBeryllium   copper
Contact TerminationSoldering
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)18
GenderJack
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Size CategoryStandard
Temperature Range-65   ~ +165 °C
Termination StyleSolder
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348



FAQ

1. Sample delivery time

Regular model need 15 days, some complex connectors need 25 days


2. Sample Fee

The most of RF connector is CNC parts,don't need to make mold.

Through, each part need be tuning the CNC, usually one sample need 200 USD cost.

The fee will return after 5K bulk order


3. The quarantee

Brass RF connector is one year, the stainless steel connector is three year.

Also, depend on the material of contact, Beryllium contact have better lifetime.


4. ROHS&REACH

Our product fully compliance with ROHS&REACH.


5.Does LENORF offer military class product

Yes. We honor to offer military product with super stable quality.


Application:

Telecommunication,Military,Broadband,Industry,Medical,5G,Radar,Antenna
