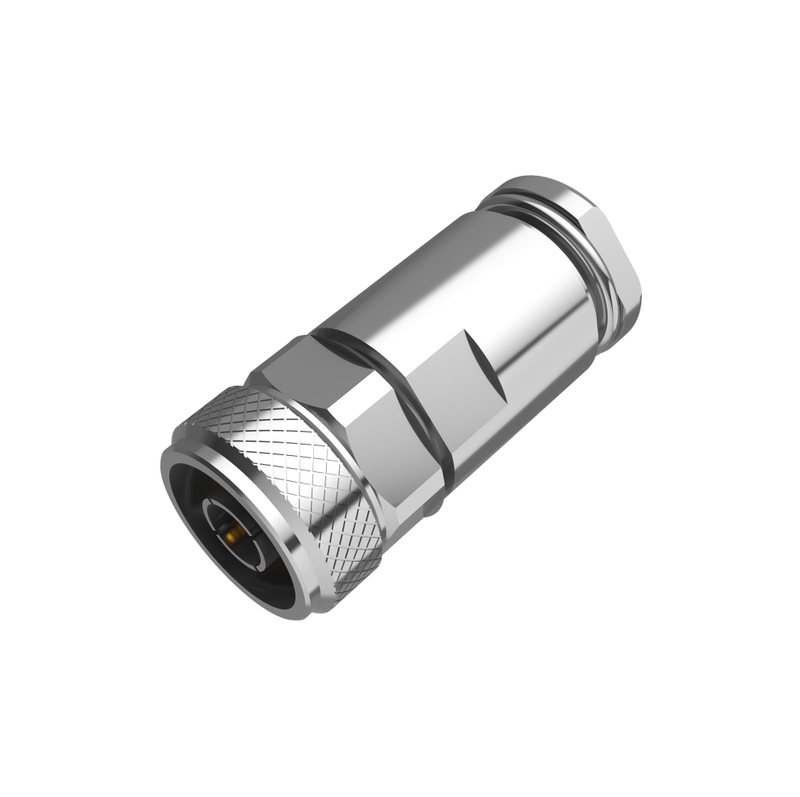

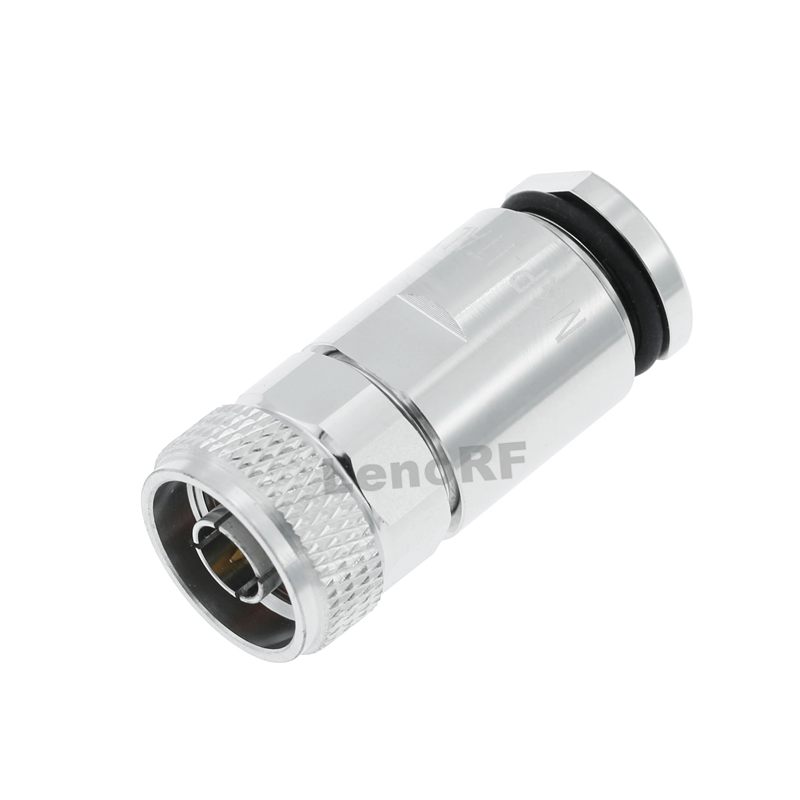

N Connectors Plug Clamping Straight For Flex10 Cable

The N type connector is high-quality and cost-effective. To provide high-quality electric performance and a reliable mechanism using threaded coupling, we utilize brass, phosphor bronze, or beryllium copper for the center contact with silver, gold plating, and brass for the body with silver, tri-metal plating.
The N type connector is compatible with a wide range of coaxial cables, including low-loss cables.
Antennas, base stations, instrumentation, satellite systems, WLAN, radar systems, broadcast, and surge protection are just a few of the uses for the RoHS and REACH-compliant N-type RF connector, which is built to the MIL-C-39012 standard.
  • 20-752
  • 87-5161-210-02
  • Male
  • Straight
  • Clamping
  • Crimping
  • Flex10
  • 87-5161-210-02.pdf
  • 87-5161-210-02.stp
Body   PlatingTri-metal
Body MaterialBrass
Cable Type -
Contact PlatingGold
Contact MaterialBeryllium   copper
Contact TerminationCrimping
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)18
Impedance (Ohms)50
Insulator MaterialPTFE
Size CategoryStandard
Temperature Range-65   -165 °C
Termination StyleCrimping
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
