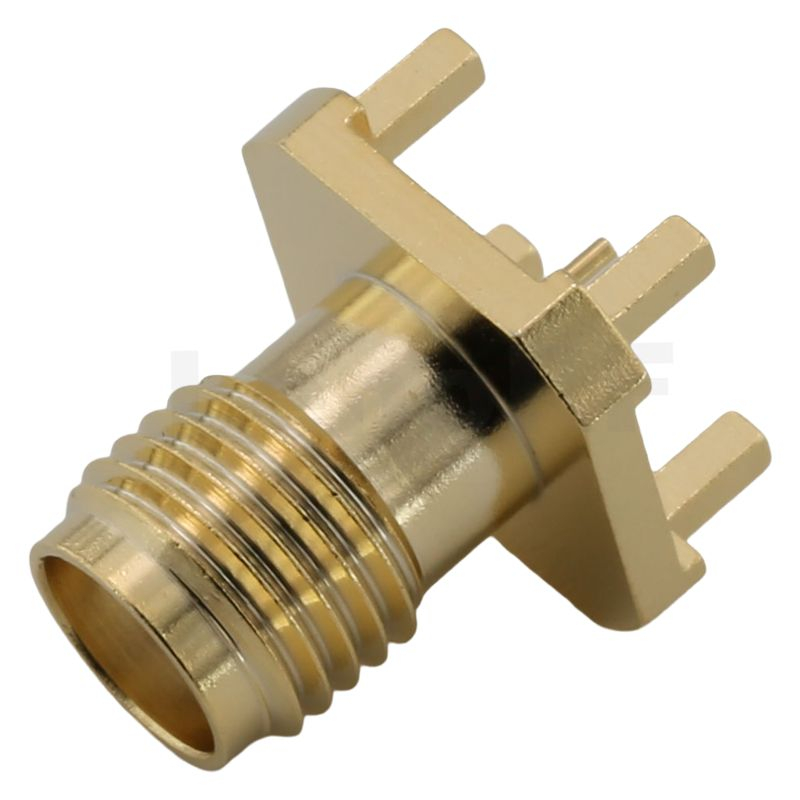

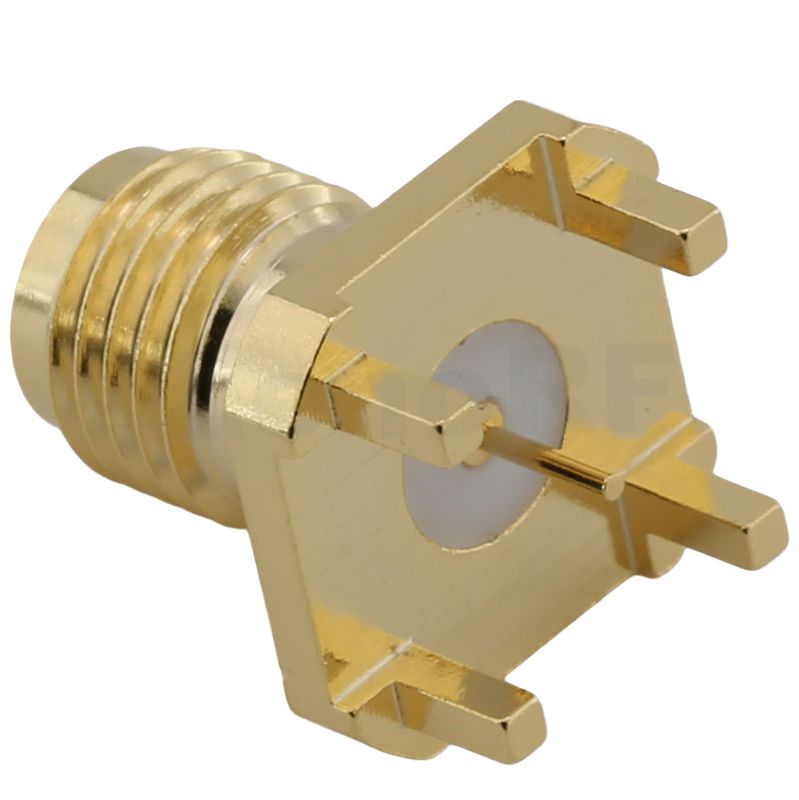

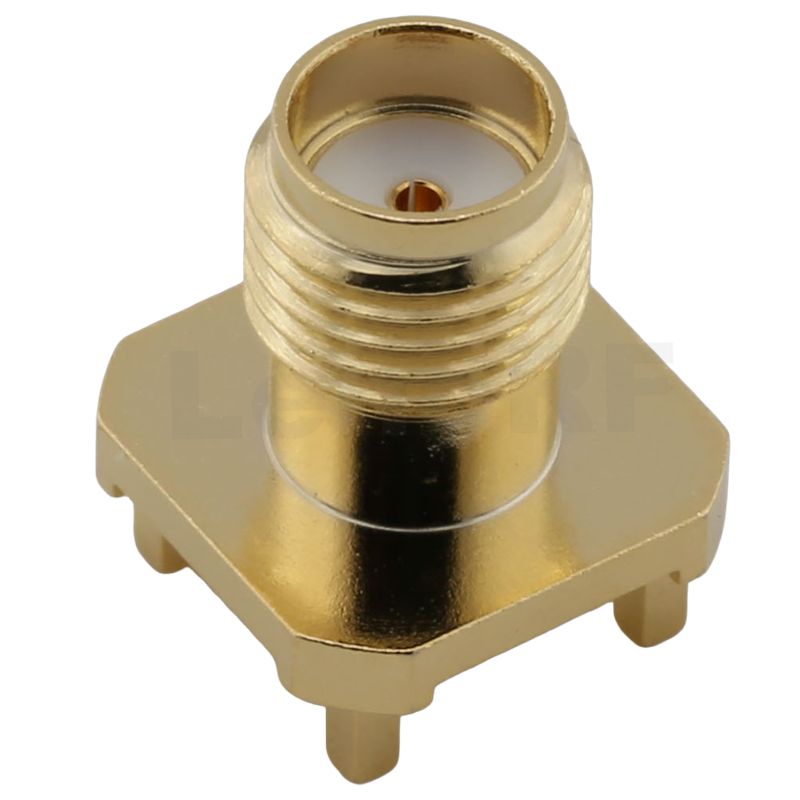

Overview
The SMA RF Connector is Reliable 50 Ω impedance matching RF connector designed for high-frequency applications up to 9 GHz, 50 OHMS. With a threaded interface, it ensures reliable connections in Electronic warfare, military radios, and secure communication links,Missile guidance, drones, and satellite payload systems,Radar systems, avionics, and navigation equipment.
Features
Frequency Range | DC to 18 GHz |
Impedance | 50 Ohms |
VSWR | ≤ 1.2:1 |
Material | Gold-plated Brass |
Interface | Threaded Interface for Secure Connection |
Applications
Wireless Communication Systems
Radar & Military Equipment
Telecommunications & 5G
Test & Measurement Equipment
GPS & Navigation Systems
Electronic warfare, military radios, and secure communication links
Missile guidance, drones, and satellite payload systems
Radar systems, avionics, and navigation equipment
Specification
Body Plating | Gold |
Body Material | Brass |
Contact Plating | Gold |
Contact Material | Beryllium Copper |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 6 |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Size Category | Subminiature |
Temperature Range | -65 to 165 °C |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348 |
Cross Reference
Amphenol: 132401
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material—beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What is "reverse polarity" (RP-SMA, RP-TNC)?
Reverse polarity means the gender of the center pin is swapped while keeping the outer body style unchanged. It was introduced to comply with regulatory requirements in Wi-Fi devices and to prevent connection with standard SMA/TNC.
What is the lifespan of an RF connector?
Connector durability is rated in mating cycles: General-purpose connectors (BNC, SMA): 500 cycles. Precision connectors (2.92 mm, 2.4 mm): 500 cycles or less. Rugged telecom connectors (N, 7/16 DIN): 500 cycles.
