Overview

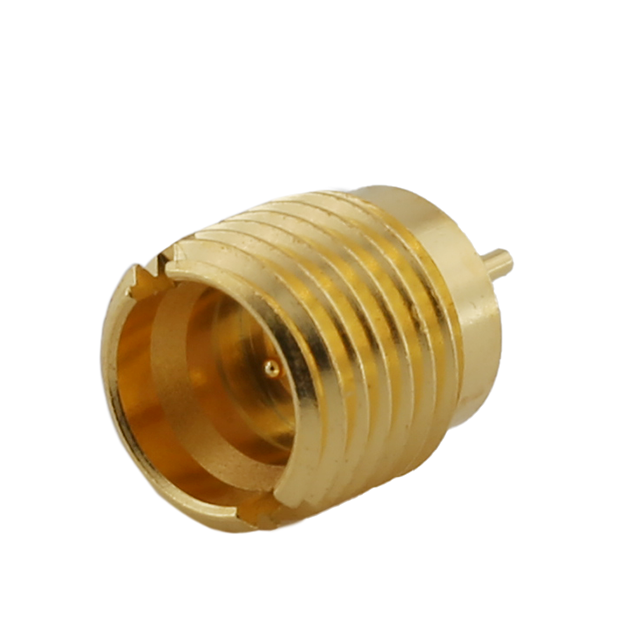

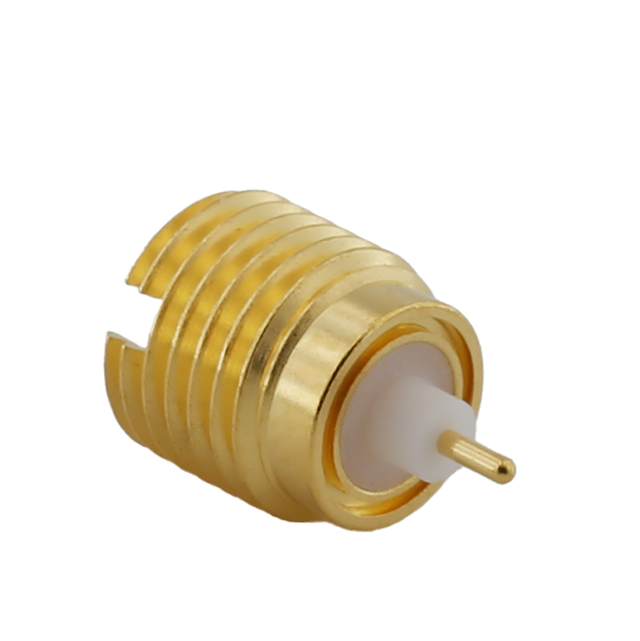

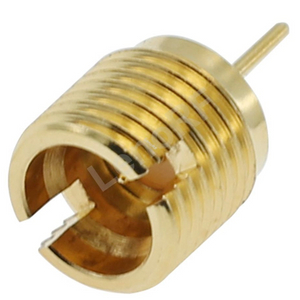

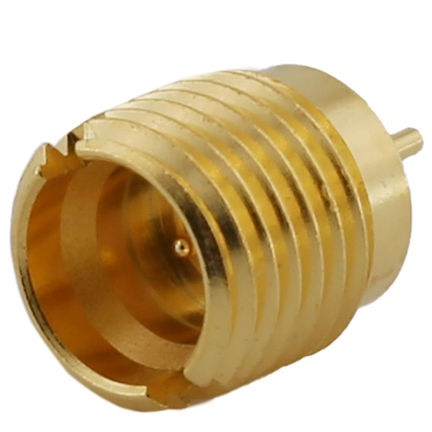

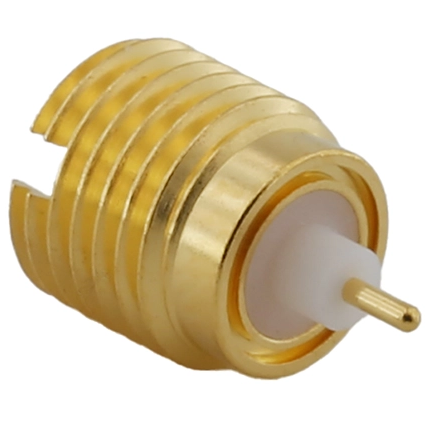

The SMP connector is a high-frequency, subminiature coaxial connector designed for applications requiring ultra-compact size and reliable performance. It features a push-on coupling mechanism that enables quick, easy connections and disconnections while maintaining consistent electrical performance. SMP connectors typically have a 50 ohm impedance and support frequencies up to 40 GHz or higher, making them ideal for RF, microwave,in-vehicle infotainment and connectivity systems and high-speed digital systems. Their small footprint allows dense packaging in test equipment, telecommunications, and aerospace applications. Available in both male and female configurations, SMP connectors deliver durable, low-reflection connections for demanding, space-constrained designs.
Features
Engineered to handle both radial and axial misalignment.
Available in push-on and snap-on mating styles for fast, easy installation.
Offered in board-to-board and cable-to-board configurations to suit diverse system layouts.
Applications
Antennas
Military
Telecommunications
Instrumentation
in-vehicle infotainment and connectivity systems
railway communications and signaling systems
vehicle radar (24 GHz, 77 GHz for ADAS)
Specification
Cable Type | N/A |
| Body Plating | Gold |
| Body Material | Brass |
| Contact Plating | Gold |
| Contact Material | Beryllium Copper |
| Insulator Material | PTFE |
| Cable Termination | Solder |
| Coupling Mechanism | Thread |
HS Code | 8636909000 |
Frequency (Max GHz) | 20 |
Gender | Male |
Impedance (Ohm) | 50 |
Size Category | Miniature |
Orientation | Straight |
Temperature Range | -65 to 165 ° C |
Mating Cycles | 500 Min |
Interface Specification | IEC 61169-44 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What is VSWR, and why does it matter?
VSWR (Voltage Standing Wave Ratio) indicates signal reflection. Ideal: 1.0 (perfect match). Lower VSWR means less signal loss and distortion.
What are typical applications of RF connectors?
Telecom (5G, LTE, satellite) Aerospace & defense (radar, avionics, secure comms) Test & measurement (network/spectrum analyzers) Broadcast & video distribution Automotive radar and IoT devices Medical imaging & equipment
What is the difference between RF connectors and coaxial connectors?
They are often used interchangeably. However: Coaxial connector refers to the physical design (shielded cylindrical form). RF connector emphasizes its use in radio-frequency applications. Most RF connectors are coaxial.
What is “reverse polarity” (RP-SMA, RP-TNC)?
Reverse polarity means the gender of the center pin is swapped while keeping the outer body style unchanged. It was introduced to comply with regulatory requirements in Wi-Fi devices and to prevent connection with standard SMA/TNC.
