Overview

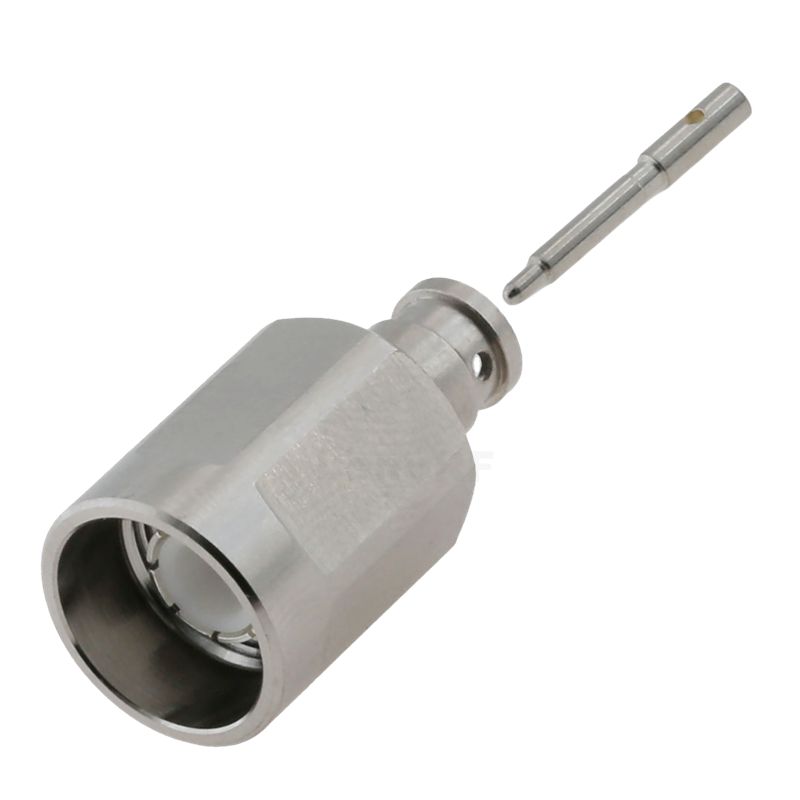

The NEX10 connector is a next-generation 50 Ohm RF interface developed for 5G, small-cell, and high-density telecom applications that demand outstanding electrical performance in a compact, low-PIM design. Created jointly by industry leaders (Rosenberger, Huber+Suhner, Radiall), NEX10 combines excellent intermodulation performance (PIM < -166 dBc) with superior RF performance up to 20 GHz. Its robust, screw- or push-pull-locking mechanism ensures reliable mating even in high-vibration environments, while the separation of electrical and mechanical contact minimizes wear and guarantees long-term stability. Designed for outdoor and indoor use, NEX10 connectors deliver weather-sealed, IP68-rated protection and low VSWR. Compact, lightweight, and optimized for small-cell radio units, DAS systems, and 5G antenna infrastructure, the NEX10 series provides high performance in a miniaturized footprint without compromising signal integrity.
Features
Frequency range: DC - 20 GHz
Impedance: 50 Ohm
Excellent PIM performance: typically -166 dBc @ 2x43 dBm
Low VSWR (< 1.15) and insertion loss across band
Compact, lightweight design -ideal for 5G and small-cell use
Robust locking system: available in screw and quick-lock push-pull versions
IP68 environmental sealing for outdoor reliability
Stainless steel or brass body, gold-plated BeCu contacts
High mating durability (> 500 cycles)
Suitable for DAS, RRH, antennas, and telecom infrastructure
Applications
Telecom equipment
Broadcast
Instrumentation
Test and measurement equipment
Patient monitoring systems with wireless connectivity
RF ablation, telemetry, and diagnostic tools
MRI, CT, and ultrasound imaging devices
Specification
Body Plating | Nickel |
Body Material | Brass |
Contact Plating | Gold |
Contact Material | Brass |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 6 |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Size Category | Medium |
Temperature Range | -65 to 165 ° C |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348,IEC 60169-17 TNC, IEC 60169-26 TNCA |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Can RF connectors be adapted from one type to another?
Yes, RF adapters (e.g., SMA-to-N, BNC-to-TNC) exist. But:Each adapter adds insertion loss and possible VSWR increase.Avoid stacking multiple adapters in sensitive applications.
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What’s the difference between threaded, bayonet, and push-on RF connectors?
Threaded (SMA, N, TNC): Secure, vibration-resistant. Bayonet (BNC): Quick connect/disconnect. Push-on (MCX, SMP): Ultra-fast, compact, used in high-density modules.
Are RF connectors interchangeable between brands?
Yes, if they follow the same standard (e.g., SMA-to-SMA). However, tolerances, plating, and dielectric quality vary — mixing low-quality and precision connectors can damage equipment.
How do environmental conditions affect RF connectors?
Temperature extremes can cause expansion/shrinkage and change performance. Humidity and salt spray may cause corrosion (use stainless steel or weatherproof designs). Vibration may loosen bayonet types — use threaded connectors in harsh environments.
