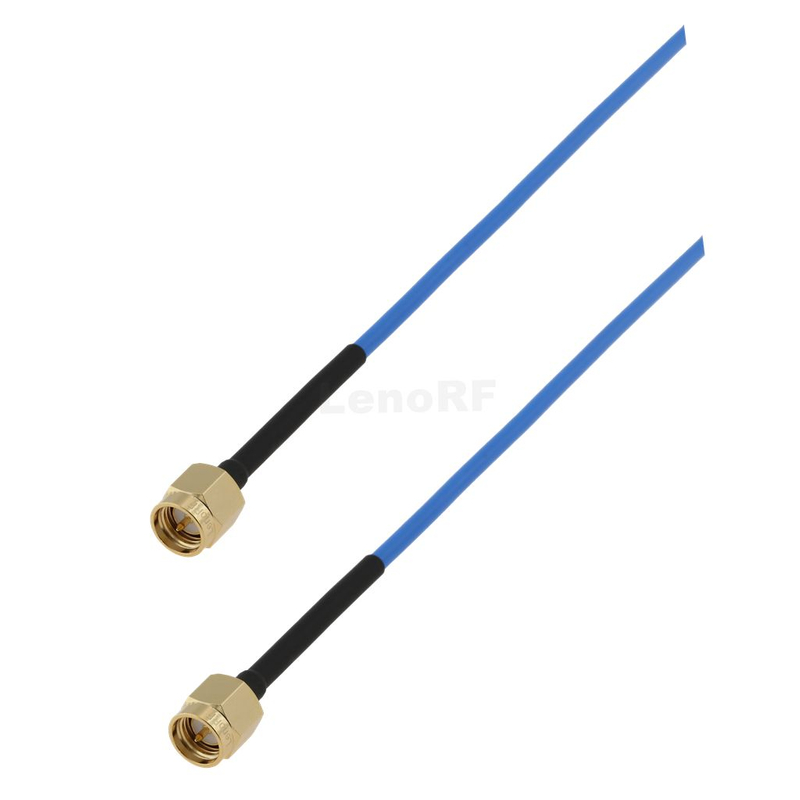

SMA Plug To Plug Straight For RG405,086,UT085,ZR086F Flexible Cable Assembly

Overview

LenoRF provides a comprehensive range of coaxial cable assemblies designed for radio frequency (RF) applications. These assemblies support all industry-standard coaxial cable types and are available with in-series (matching) or between-series (different) interfaces. Additionally, some configurations feature an unterminated or blunt-cut end on one side for flexible integration.They also offer different orientations, such as straight or right-angle, along with bulkhead mounting options.

With these diverse features and custom design capabilities, LenoRF's coaxial cable assemblies meet the demanding requirements of various industries and applications:Railway communications and signaling systems,In-vehicle infotainment and connectivity systems.

Cable Types

Semi-Rigid & Semi-Flexible Cable

They are semi-flexible or semi-rigid, high-performance coaxial cables with fixed dimensions, ideal for stable, low-loss signal transmission in demanding applications.

• RG405 RG402 RG401

• Semi-Flexible 0.047 inch

• Semi-Flexible 0.086 inch

• Semi-Flexible 0.141 inch

• Semi-Flexible UT085

• Semi-Flexible 0.086

• Semi-Flexible 086




Applications:

• Telecommunications (cell towers, wireless networks)

• Broadcasting (radio, TV transmission)

• Aerospace & Defense (radar, satellite communications)

• Medical Equipment (MRI machines, diagnostic devices)

• Industrial & IoT (RFID, automation systems)

• Railway communications and signaling systems

Cross Reference:

Mini-Circuits: 086-3SM+

Amphenol Times Microwave: IB086-SMSM-8.0I

Teledyne: 910-0202-008

TE: 2016757-9

Key Features:

• High stability

• 100% tested for reliability

• Superior electrical performance

• Precision connectors

• Extended mating cycles

• Heat-resistant and flame-retardant design

Specification

FAQ

Sample Delivery Time

Regular models require 15 days, while some complex connectors require 25 days.

Sample Fee

Most RF connectors are CNC-machined parts and do not require mold-making.

However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.

This fee will be refunded after a 5K bulk order.

Guarantee

Brass RF connectors come with a one-year warranty.

Stainless steel connectors come with a three-year warranty.

The lifespan also depends on the contact material  beryllium contacts offer better durability.

ROHS & REACH Compliance

Our products fully comply with ROHS & REACH regulations.

Does LENORF Offer Military-Grade Products?

Yes. We are honored to provide military-grade products with exceptionally stable quality.

MOQ (Minimum Order Quantity)

Regular connectors: 500 PCS

Adapters: 100 PCS

Military connectors: 100 PCS

Materials

Common materials include:

Body: Brass, stainless steel

Insulator: PTFE, PEEK

Contacts: Brass, phosphor bronze, beryllium copper

Other: Aluminum, titanium alloy

Can RF connectors be reused?

Yes, but performance degrades with wear. Precision connectors (used in test equipment) should be handled carefully - damage to threads or pins increases VSWR and insertion loss.

What is the difference between threaded, bayonet, and push-on RF connectors?

Threaded (SMA, N, TNC): Secure, vibration-resistant. Bayonet (BNC): Quick connect/disconnect. Push-on (MCX, SMP): Ultra-fast, compact, used in high-density modules.

Are RF connectors interchangeable between brands?

Yes, if they follow the same standard (e.g., SMA-to-SMA). However, tolerances, plating, and dielectric quality vary — mixing low-quality and precision connectors can damage equipment.

How do environmental conditions affect RF connectors?

Temperature extremes can cause expansion/shrinkage and change performance. Humidity and salt spray may cause corrosion (use stainless steel or weatherproof designs). Vibration may loosen bayonet types - use threaded connectors in harsh environments.

Each cable undergoes rigorous individual testing and is delivered with a comprehensive test report.
