MCX-JJ-086
Male
Straight
Crimping
Crimping
Availability: | |
---|---|
Quantity: | |
LenoRF provides a comprehensive range of coaxial cable assemblies designed for radio frequency (RF) applications. These assemblies support all industry-standard coaxial cable types and are available with in-series (matching) or between-series (different) interfaces. Additionally, some configurations feature an unterminated or blunt-cut end on one side for flexible integration.
Coaxial cable assemblies offer a reliable solution for transmitting RF signals within a system. They are commonly used to link printed circuit boards (PCBs) but also serve as I/O connections and external antenna interfaces for wireless modules. Available in lengths ranging from 0.98 inches (25 mm) to 1200 inches (100 feet), these assemblies come in various configurations, including female-to-female, male-to-male, and mixed-gender connections. They also offer different orientations, such as straight or right-angle, along with bulkhead mounting options.
With these diverse features and custom design capabilities, LenoRF’s coaxial cable assemblies meet the demanding requirements of various industries and applications.
Micro coaxial cables offer high reliability and sensitivity, with an ultra-small OD, ideal for tight-space applications.
0.81 mm - 1.13 mm - 1.32 mm - 1.37mm
Flexible cables feature a stranded conductor for flexing or a solid conductor for low-loss performance. They offer double shielding and various RF connectors, ideal for high-speed data and video transmission.
RG316 - RG174 - RG142 - RG58 - RG178 - RG213 - RG214
LMR100 - LMR195 - LMR200 - LMR240 - LMR300 - LMR400 - LMR 500 - LMR600
Conformable cables are flexible, hand-formable alternatives to rigid coaxials, requiring no special tools. They support various RF connectors and ensure no signal loss from bending.
Hand-Formable 0.047 inch
Hand-Formable 0.085 inch
Hand-Formable 0.141 inch
Hand-Formable 0.250 inch
RF semi-rigid cables are semi-flexible, high-performance coaxial cables with fixed dimensions, ideal for stable, low-loss signal transmission in demanding applications.
RG405 RG402 RG401
Semi-Rigid 0.047 inch
Semi-Rigid 0.086 inch
Semi-Rigid 0.141 inch
Telecommunications (cell towers, wireless networks)
Broadcasting (radio, TV transmission)
Aerospace & Defense (radar, satellite communications)
Medical Equipment (MRI machines, diagnostic devices)
Industrial & IoT (RFID, automation systems)
High stability
100% tested for reliability
Superior electrical performance
Precision connectors
Extended mating cycles
Heat-resistant and flame-retardant design

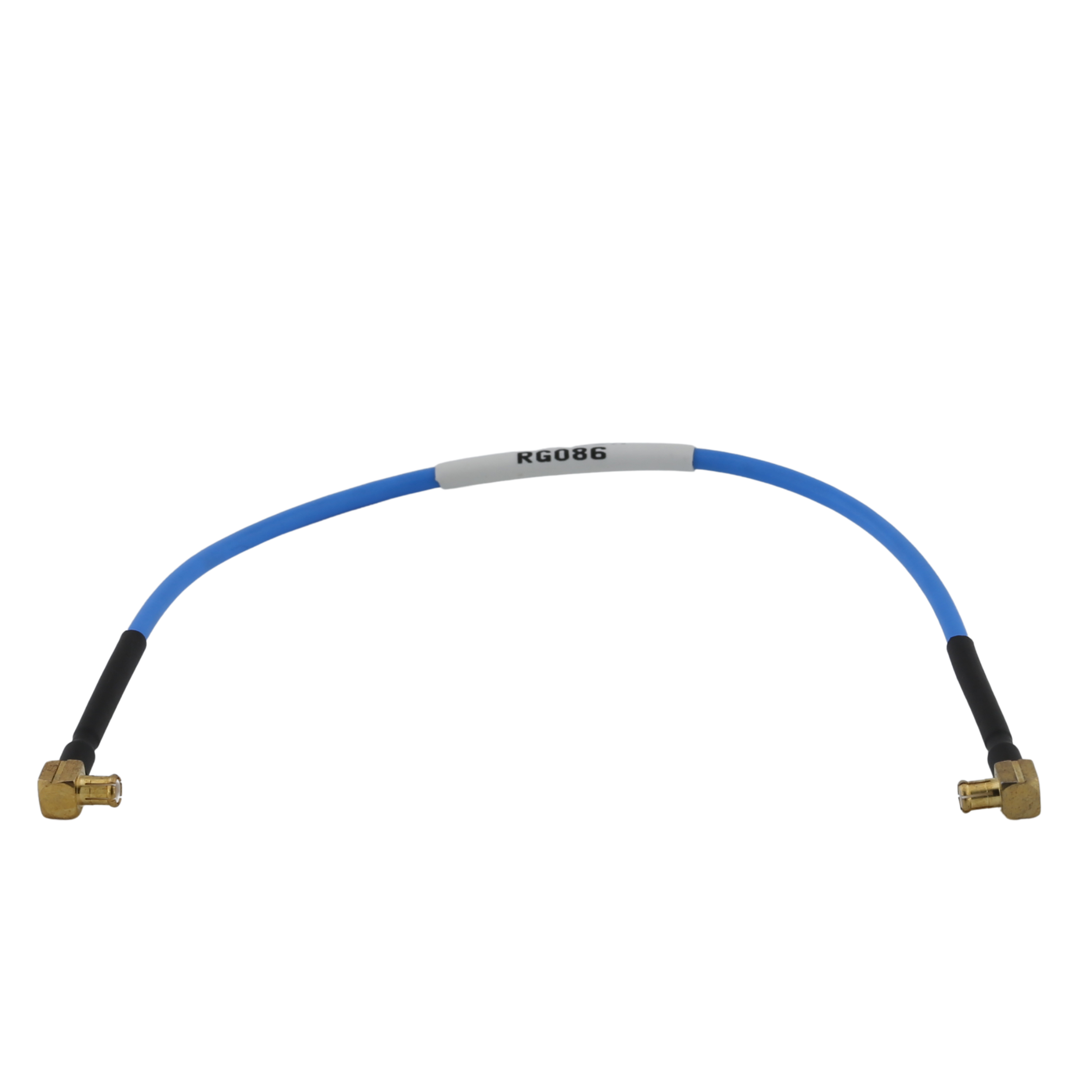

Connector | |
Side A | MCX right angle |
Side B | MCX right angle |
Cable | 086, 0.085 INCH, RG405 |
Impedance | 50 Ohms |
Frequency Range | 0~6 GHz |
Working Temperature | -55°C ~ 125°C |
FAQ
1. Sample delivery time
Regular model need 15 days, some complex connectors need 25 days
2. Sample Fee
The most of RF connector is CNC parts,don't need to make mold.
Through, each part need be tuning the CNC, usually one sample need 200 USD cost.
The fee will return after 5K bulk order
3. The quarantee
Brass RF connector is one year, the stainless steel connector is three year.
Also, depend on the material of contact, Beryllium contact have better lifetime.
4. ROHS&REACH
Our product fully compliance with ROHS&REACH.
5.Does LENORF offer military class product
Yes. We honor to offer military product with super stable quality.
