20-114
87-5061-031-01
Female
Straight
Crimping
Crimping
N/A
Availability: | |
---|---|
Quantity: | |

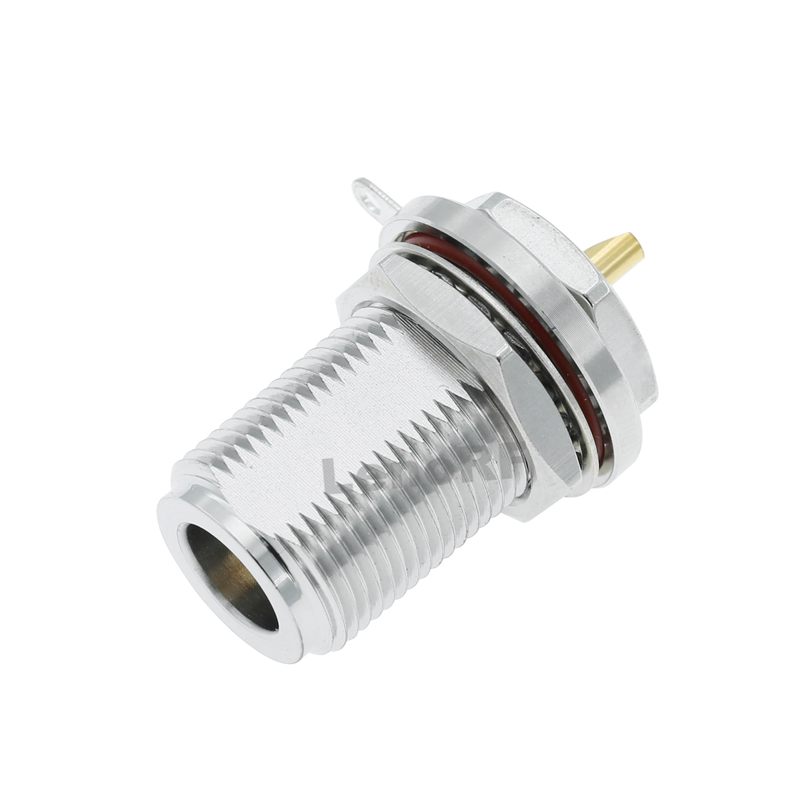

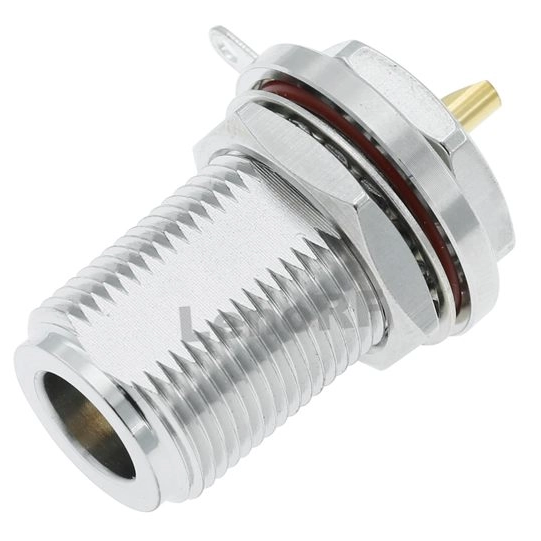

The N (Type-N) connector is a Compact right angle design for PCB mounting ,mid-size, threaded RF coaxial connector designed for applications such as Railway communications and signaling systems,MRI, CT, and ultrasound imaging devices, as well as In-vehicle infotainment and connectivity systems, requiring reliable performance up to 11 GHz (standard) and 18 GHz (precision versions).
Threaded Coupling | Ensures secure connection with good mechanical stability, suitable for outdoor and vibration-prone environments. |
Frequency Range | Standard N: DC to 11 GHz Precision N (50 Ω): up to 18 GHz |
Impedance Options | Available in both 50 Ω (RF/microwave systems) and 75 Ω (broadcast/video applications). |
Power Handling | Handles relatively high RF power. |
Durability | Rugged design with good weather resistance, making it suitable for base stations and outdoor antennas. |
Wireless base stations and cellular infrastructure
Antennas and RF transmission lines
Military and aerospace communications
Test and measurement equipment
Railway communications and signaling systems
MRI, CT, and ultrasound imaging devices
In-vehicle infotainment and connectivity systems
Body Plating | Tri-Metal |
Body Material | Brass |
Cable Type | N/A |
Contact Plating | Gold |
Contact Material | Phosphor bronze |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 8 |
Gender | Female |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Size Category | Subminiature |
Temperature Range | -65 to 165 °C |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348 |
Regular models require 15 days, while some complex connectors require 25 days.
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material—beryllium contacts offer better durability.
Our products fully comply with ROHS & REACH regulations.
Yes. We are honored to provide military-grade products with exceptionally stable quality.
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
Male: Has a center pin and usually an outer thread or bayonet. Female: Has a receptacle (socket) for the center pin and matching thread. Some connectors (like SMA) can be confusing because “reverse polarity” (RP-SMA) swaps pin/socket configuration.
VSWR (Voltage Standing Wave Ratio) indicates signal reflection. Ideal: 1.0 (perfect match). Lower VSWR means less signal loss and distortion.
Telecom (5G, LTE, satellite) Aerospace & defense (radar, avionics, secure comms) Test & measurement (network/spectrum analyzers) Broadcast & video distribution Automotive radar and IoT devices Medical imaging & equipment
They are often used interchangeably. However: Coaxial connector refers to the physical design (shielded cylindrical form). RF connector emphasizes its use in radio-frequency applications. Most RF connectors are coaxial.
