Features
Frequency range up to 65 GHz (mode-free operation)
50 Ohm impedance with low VSWR (< 1.15 typical)
Threaded coupling ensures vibration-resistant connection
Stainless steel housing, beryllium copper contacts, gold-plated for durability
Air dielectric design for low insertion loss and high repeatability

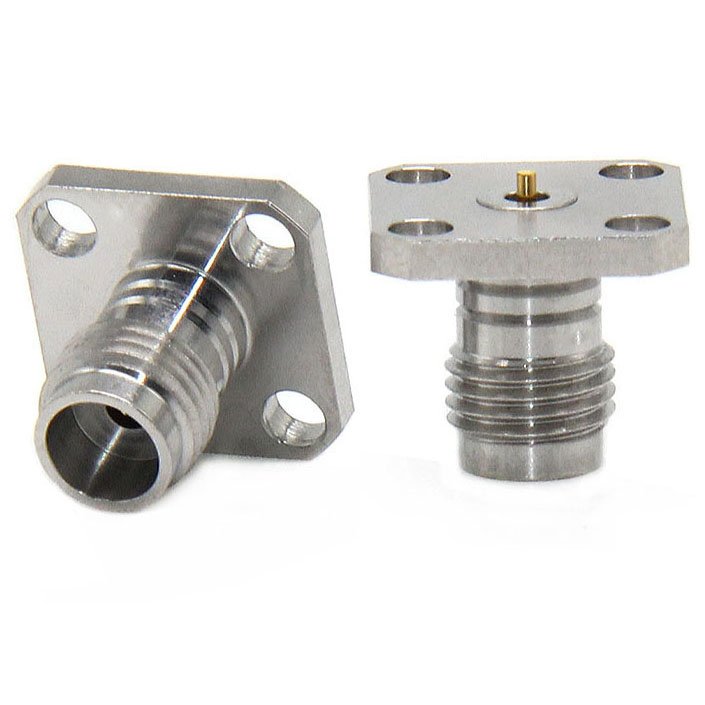

Available in jack, plug, flange-mount, and PCB-mount versions
Ideal for mmWave, 5G, and test & measurement environments
Applications
Wireless Communication Systems
5G, LTE, Wi-Fi, and satellite communication systems
Towers, repeaters, routers, and access points for reliable RF signal transfer
Base stations, antennas, and feeder cables
Radar & Military Equipment
Telecommunications & 5G
Test & Measurement Equipment
GPS & Navigation Systems
Specification
Body Plating | Gold |
Body Material | Stainless Steel |
Contact Plating | Gold |
Contact Material | Beryllium Copper |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 65 |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Size Category | Miniature |
Temperature Range | -65 to 165 °C |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material—beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Are RF connectors interchangeable between brands?
Yes, if they follow the same standard (e.g., SMA-to-SMA). However, tolerances, plating, and dielectric quality vary — mixing low-quality and precision connectors can damage equipment.
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
What’s the difference between threaded, bayonet, and push-on RF connectors?
Threaded (SMA, N, TNC): Secure, vibration-resistant. Bayonet (BNC): Quick connect/disconnect. Push-on (MCX, SMP): Ultra-fast, compact, used in high-density modules.
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
