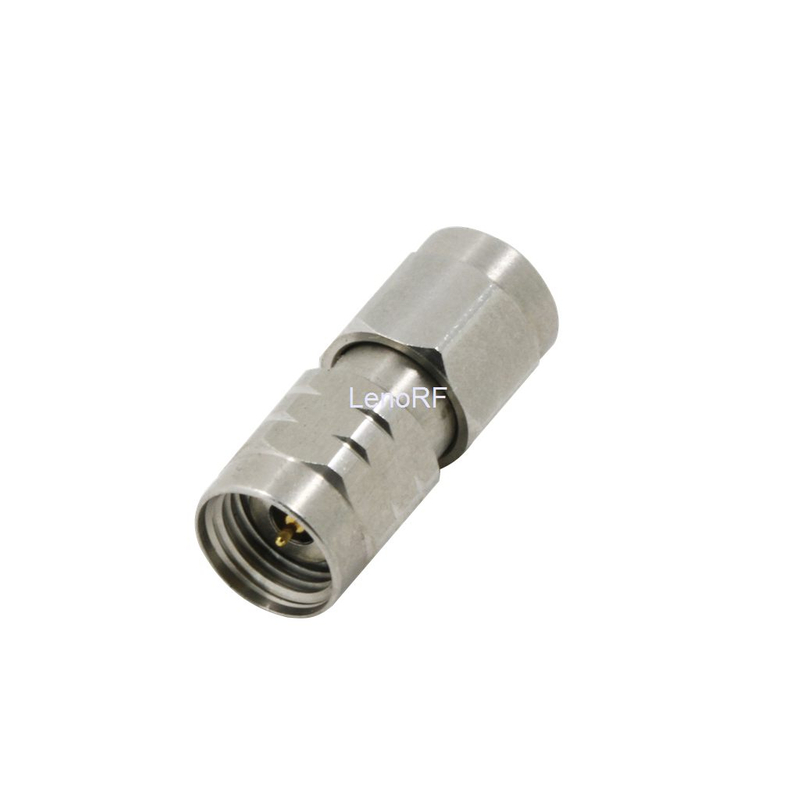

2.4mm Connector Plug To 2.92mm Connector Plug Adapter

The 2.4 mm connector is a screw-on precision connector with a 50 ohm impedance that can operate at up to 50 GHz. Satellites, test & measurement, and radars all employ the 2.4 mm connections, which are standardized according to IEC 61169-40. Mechanically, the connections and 1.85 mm connectors are interchangeable. They resemble SMA and 3.5 mm connections in appearance, but they require precise adapters to connect to SMA, 3.5mm, and 2.92mm. Traditional SMA and 2.9 mm connections contain a thick outside conductor, whereas 2.4 mm connectors are more durable.
  • 831-1205
  • Male to Male
  • Straight
  • Crimping
  • Crimping
Availability:
Quantity:
Series 12.4mm
Series 22.92mm
Body PlatingGold
Body MaterialStainless Steel
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)65
GenderJack
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Temperature Range-65   -165 °C
Mating Cycles500   Min
