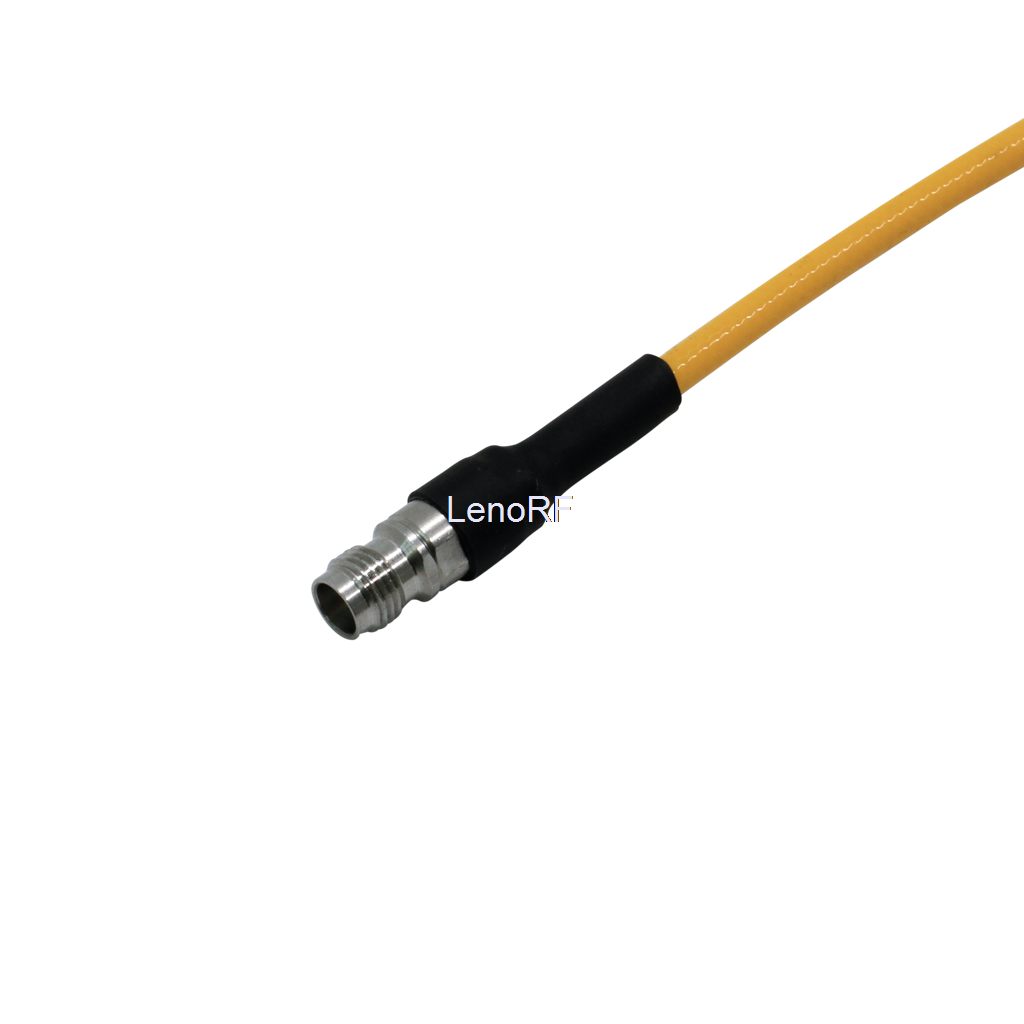

Precision Test Cable Assembly 2.92mm Jack To Jack 40GHz

For Vector Network Analyzers, we demonstrated a wide range of typical microwave cable assemblies (VNA). 2.4mm connections are used on the 50 GHz assemblies, whereas 1.85mm connectors are used on the 70 GHz variants. The braided, stainless steel armoring that surrounds the coax creates a tough but flexible cable with a flex life exceeding 100,000 cycles, making these test cables suitable for semiconductor probe testing, precision bench top testing, and lab/production testing. Very high phase stability and a large number of mating cycles are two standout features. Various industrial test and measurement applications are enabled by the range of cable types and connector interfaces.
  • 832-1129
  • Male
  • Straight
  • Crimping
  • Crimping

  • Specification of product:


    Part No 832-1129
    Connector Series 2.92mm
    Connector Type female
    Contact Termination Solder
    Shield Termination Crimp
    Impedance 50 Ohm
    Mounting Type Free Hanging
    Cable Group
    Fastening Type Thread
    Frequency - Max DC-40 GHz
    Body Material Brass
    Body Finish Nickel
    Center Contact Material Brass
    Center Contact Finish Gold
    Dielectric Material Polytetrafluorethylene (PTFE)
    Voltage Rating 375V
    Working Temperature -65°C ~ 165°C

    Application of product

    Aerospace,Defense,Telecom,Broadcast, Industrial,Medical, Instrumentation.

    Environmental Compliance

    All product is RoHS and REACH complaint.
