Precision Test Cable T06G

Quantity:
Inquire Add to Basket

Part No ZT06G

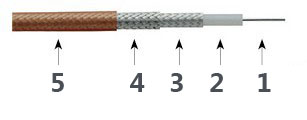

Cable Structure
No Material&Surface Finish
1 Conduct:
Silver plated cooper wire
2 Insulator: PTFE
3 Inner braidinging:
Silver plated cooper braiding
4 Outer braidinging:  Silver plated cooper braiding
5 Jacket Jacket: FEP





Mechanism Characteristic
Dimension mm Inch
Conduct 0.93 0.0362
Insulator 3 0.1181
Outer braiding 3.95 0.1555
Jacket 4.95 0.1949
Weight 0.056kg/m
Min.Bending Radius(Dynamic) 25.4mm
Cycle > 5000
Temperature Range (-55℃~ + 125℃)
Electrical Performance
Connector 1GHz 3GHz  6GHz
SMA  1.10:1 1.15:1 1.25:1
VSWR Max N   1.10:1 1.15:1 1.25:1
TNC 1.15:1 1.15:1 1.25:1
BNC  1.15:1 1.25:1 1.25:1
Impendence 50Ω
Velocity Propagation 70%
Shielding efficiency > 80 dB
Amplitude stability < ±0.05dB@6GHz
Bending phase stability ±1.5° @6GHz
Attenuation(25℃)
Frequency(MHz) dB/100ft dB/100m
100 3.96 13
400 7.92 26
1000 12.8 42
3000 23.77 78
5000 32 105
6000 39.01 128
Average power (25℃,sea level,only cable)
Frequency(MHz) Watts
100 1300
400 650
1000 400
3000 240
5000 194
6000 170
