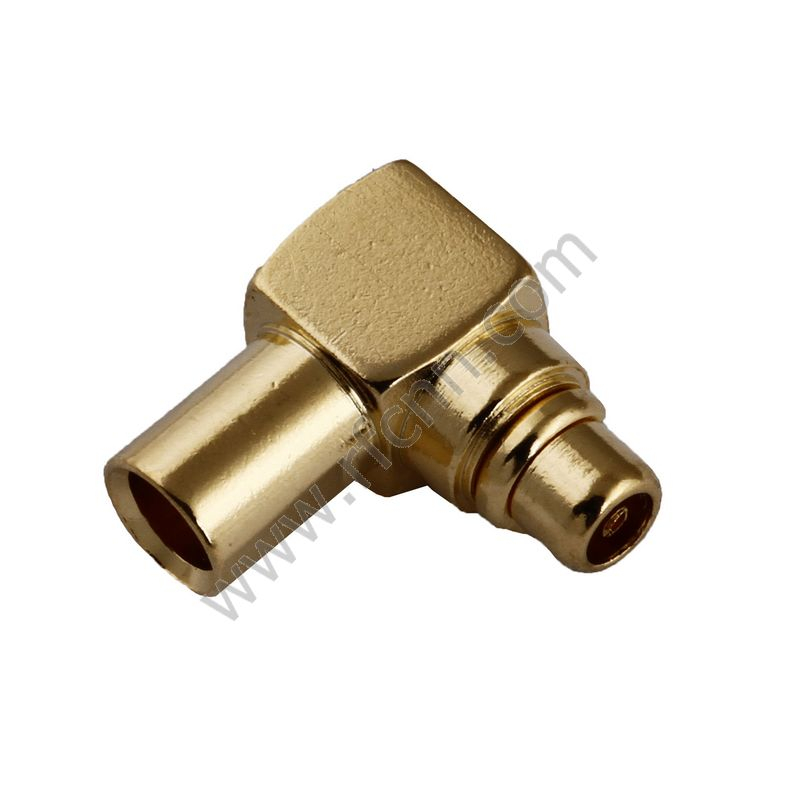

MMCX Male Right Angle Solder For RG405 Cable

MMCX connectors are designed for densely packed electronic packages with space and weight restrictions. Mechanical stability is ensured via a snap-on interface with no slotting in the outer conductor. Typical applications include wireless/PCS devices, telephony, GPS receivers, and consumer electronics. Medical MRI scanners are available in non-magnetic forms.
  • MMCX121RA-405
  • Male
  • Right angle
  • Soldering
  • Soldering
  • RG405
Availability:
Quantity:
  • Part No MMCX121RA-405
    Description MMCX Male Right angle Crimp For RG405 PCB RF Connector
    Connector Series MMCX
    Connector TypeMale
    Contact Termination Solder
    Shield TerminationSolder
    Impedance 50 Ohm
    Mounting Type Free Hanging
    Cable Group RG405
    Fastening Type Snap On
    Frequency - Max DC-18GHz
    Body Material Brass
    Body Finish Gold
    Center Contact Material Brass
    Center Contact Finish Gold
    Dielectric Material Polytetrafluorethylene (PTFE)
    Voltage Rating 375V
    Working Temperature -65°C ~ 165°C
