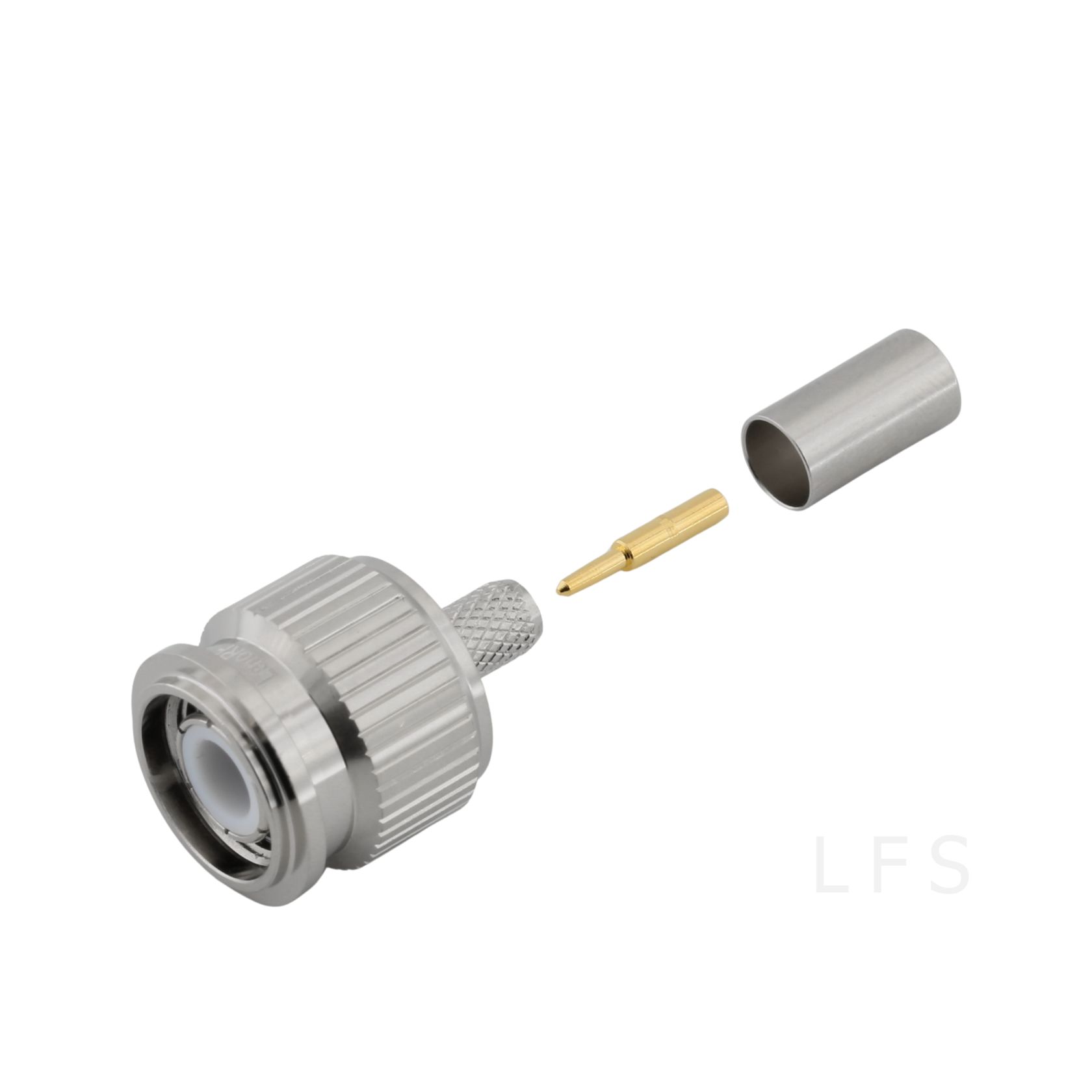

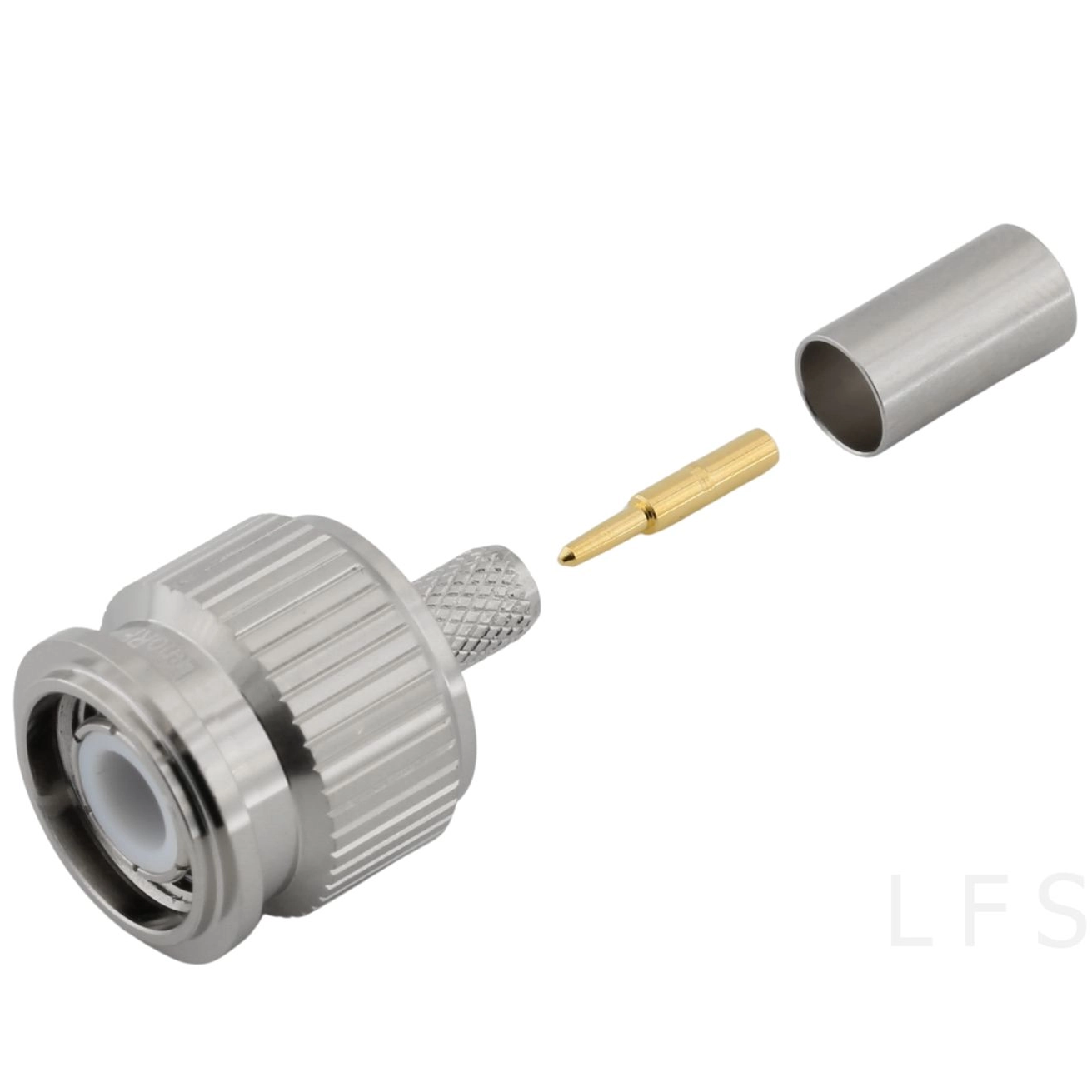

TNC Connector Male Straight Crimping For RG223 Cable

TNC connectors (Threaded Neill Concelman) are coaxial connectors with a 50 ohm impedance. It's a threaded, higher-performance variant of the more popular BNC connection. It's utilized for RF communications at frequencies up to 11 GHz. It's an excellent choice for dealing with microwave frequencies because of its structure, which has threaded couplings that establish a strong connection. Standard polarity and reverse polarity TNC connectors are provided (RP-TNC).
  • 3.02.082

  • Male

  • Straight

  • Crimping

  • Crimping

  • RG223

Availability:
Quantity:

Overview

The TNC RF Connector is a threaded, weatherproof connector designed for high-frequency applications up to 11 GHz. It ensures superior durability and stability in RF systems requiring secure connections.


Specifications

  • Frequency Range: DC to 18 GHz

  • Impedance: 50 Ohms

  • VSWR: ≤ 1.3:1

  • Material: Gold-plated Brass or Stainless Steel

  • Weatherproof Design for Outdoor Use

Applications

  • Wireless Communication Systems

  • Radar & Military Equipment

  • Telecommunications & 5G

  • Test & Measurement Equipment

  • GPS & Navigation Systems




Specification


Materials&Electroplating
ConductBrass/ Golden Plating
InsulatorPTFE
BodyBrass  /Ternary
Other PartsBrass/  Nickel Plating
Electric Performance
Impedance50 OHMS
Frequency Range0-6 GHz
VSWR≤1.30
Rating Voltage500V
Environmental
Temperature Rating-65°C   to +165°C
Corrosion (Salt Spray)MIL-STD-202,   Method 101, Condition B
VibrationMIL-STD-202,   Method 204, Condition D, 20 Gs
ShockMIL-STD-202,   Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202,   Method 107. Cond. B, -65°C to +125°C
Moisture ResistanceMIL-STD-202,   Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202,   Method 105, Condition C, 70k Ft.




FAQ


Sample Delivery Time


Regular models require 15 days, while some complex connectors require 25 days.


Sample Fee


Most RF connectors are CNC-machined parts and do not require mold-making.

However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.

This fee will be refunded after a 5K bulk order.

Guarantee

Brass RF connectors come with a one-year warranty.

Stainless steel connectors come with a three-year warranty.

The lifespan also depends on the contact material—beryllium contacts offer better durability.


ROHS & REACH Compliance

Our products fully comply with ROHS & REACH regulations.


Does LENORF Offer Military-Grade Products?

Yes. We are honored to provide military-grade products with exceptionally stable quality.


MOQ (Minimum Order Quantity)

Regular connectors: 500 PCS

Adapters: 100 PCS

Military connectors: 100 PCS


Materials

Common materials include:

Body: Brass, stainless steel

Insulator: PTFE, PEEK

Contacts: Brass, phosphor bronze, beryllium copper

Other: Aluminum, titanium alloy
