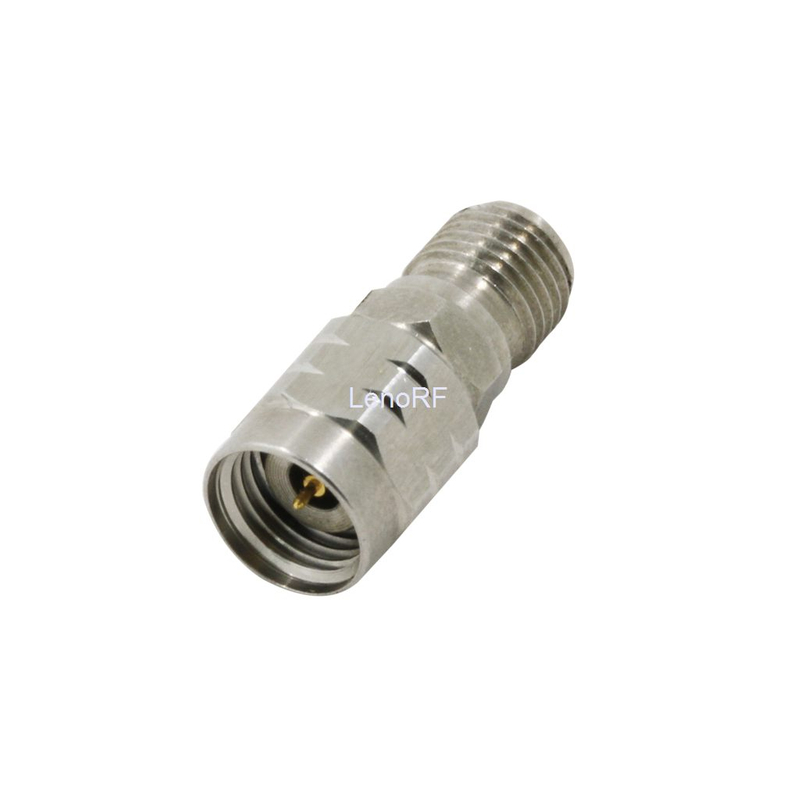

2.4mm Connector Plug To Jack Adapter

The 2.4 mm connector is a screw-on precision connector with a 50 ohm impedance suitable for operation up to 50 GHz. Satellites, test and measurement equipment, and radars all require 2.4 mm connections, which are standardized according to IEC 61169-40. Mechanically, the connections are interchangeable with 1.85 mm connectors. They resemble SMA and 3.5 mm connections in appearance, but they require precise adapters to match with SMA, 3.5mm, and 2.92mm connectors. The outer conductor of 2.4 mm connections is thicker than that of typical SMA and 2.9 mm connectors, making them more durable.
  • 831-1129
  • Male to Female
  • Straight
  • Crimping
  • Crimping
  • N/A
Series 12.4mm
Series 22.4mm
Body PlatingGold
Body MaterialStainless Steel
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)65
Impedance (Ohms)50
Insulator MaterialPTFE
Temperature Range-65   -165 °C
Mating Cycles500   Min
