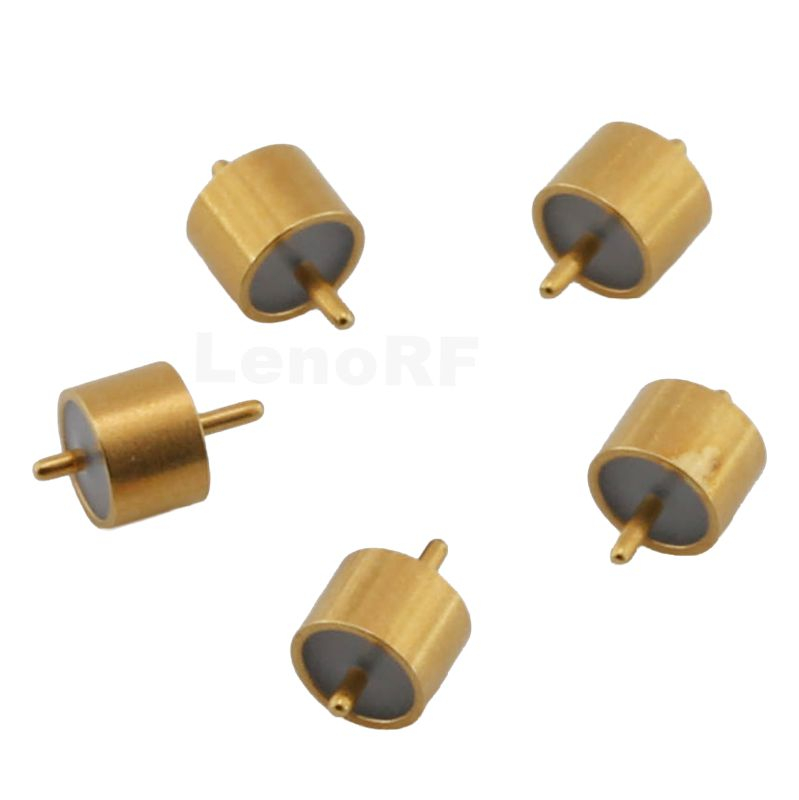

RF Glass Bead Sintering,hermetic adapter

Glass sintering technology is ideally suited for connector manufacturing owing to its excellent hermeticity, high temperature resistance and cost efficiency. Hermetically sealed connectors produced with this technology are widely used for interconnections between hermetically sealed packages, and are thus well-suited for aerospace, satellite communications and military applications.

Model:
GB000
Gender:
Male
Orientation:
Straight
Termination Body:
Crimping
Termination Contact:
Crimping

Availability:

Quantity:



Inquire Add to Basket

Product Description

Outline:

GLASSBEAD

Specification:

Impedance：	50±2Ω	Temperature：	-55~400℃
Unit：	mm	Airtightness：	R1≤1.1013x10-3Pa·cm3/sHe)
VSWR：	1：1.20(Max)	Gold plating thickness：	≥1.27um
Insulation resistance：	≥1X 1010 Ω	Nickel plating thickness：	≥2.5um
Dielectric voltage withstand：	100V	Shape of pin end：	Flat,Round

Part No:

Part No	ØD2	ØD2	B	L1	L1 END	L2	L2 END
BZ-003V	1.73	0.23	1.4	0.51	Round	0.79	Round
BZ-1386	1.73	0.23	1.4	0.66	Round	1.9	Round
BZ-171423	1.73	0.23	1.4	0.66	Round	1.91	Flat
BZ-171423-02	1.73	0.23	1.4	0.76	Round	3.05	Round
BZ-171423-06/03	1.73	0.23	1.4	1.01	Round	1.27	Round
BZ-171423-07	1.73	0.23	1.4	0.66	Round	0.813	Round
BZ-191030	1.93	0.3	1.4	1.02	Round	2.03	Round
BZ-191030-02	1.93	0.3	1.4	1	Round	2.7	Round
BZ-191030-09	1.93	0.3	1.4	1.04	Round	1.74	Round
BZ-191030-XB	2	0.3	1.6	1.8	Flat	4.6	Flat
BZ-191030-R11	1.93	0.3	1.4	1	Round	1	Round
BZ-191030-PT	1.93	0.3	1.4	1	Flat	2	Flat
BZ-197030	1.93	0.3	0.7	4.57	Round	1.4	Round
BZ-191730	1.93	0.3	1.75	1.85	Round	4.57	Round
BZ-194030	1.93	0.3	4	1.65	Round	2.16	Round
BZ-191430-02	1.91	0.3	1.4	1.01	Round	2.69	Round
BZ-191430-05	1.93	0.3	1.4	0.97	Round	1.07	Round
BZ-191430-11	1.9	0.3	1.4	1.55	Round	1.27	Round
BZ-1410-08	1.93	0.3	1.4	0.74	Round	1.5	Round
BZ-301846-1	2.49	0.3	3.18	1.83	Round	4.57	Flat
BZ-182038	1.8	0.38	2	8	Round	2	Round
BZ-121238	2.49	0.38	1.57	1.27	Round	1.27	Round
BZ-251638/805	2.49	0.38	1.57	1.27	Round	4.57	Round
BZ-251538	2.46	0.38	1.52	1.83	Round	4.57	Round
BZ-2563825	2.49	0.38	6	2	Flat	5	Flat
BZ-254038	2.49	0.38	4	2	Round	2.49	Round
BZ-281645	2.8	0.45	1.52	1.78	Round	1.6	Round
BZ-281645-2	2.8	0.45	1.52	1.78	Round	4.32	Flat
BZ-281545-3	2.8	0.45	1.52	1.78	Round	9.91	Round
BZ-281545-2	2.8	0.45	1.52	1.83	Round	1.6	Round
BZ-281546-1	2.8	0.45	1.52	1.75	Flat	2.97	Flat
BZ-213345	1.78	0.46	1.07	1.27	Round	3.3	Flat
ND-201851	2	0.5	1.8	6.2	Round	3	Round
BZ-1701-CX1	4	0.51	3	1.98	Round	1.52	Round
ND-201951	2	0.51	1.9	4	Round	6	Round
BZ-401551-3	4	0.51	1.52	1.27	Round	3.18	Round
BZ-202708	5	0.8	6	3	Flat	3	Flat
BZ-305080	5	0.8	3	2	Flat	12	Round
BZ-401808	4	0.8	1.8	1	Flat	2.5	Flat
BZ-401808-2	4	0.8	1.8	1.5	Flat	2.5	Flat
BZ-553091	5.5	0.91	3	1.8	Round	3	Round
RF-5530-0.9	5.5	0.91	3	3	Round	14	Round
