Features
Frequency range up to 65 GHz (mode-free operation)
50 Ohm impedance with low VSWR (< 1.15 typical)
Threaded coupling ensures vibration-resistant connection
Stainless steel housing, beryllium copper contacts, gold-plated for durability
Air dielectric design for low insertion loss and high repeatability

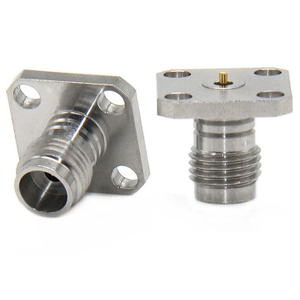

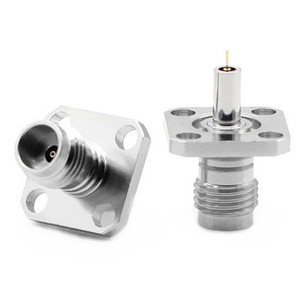

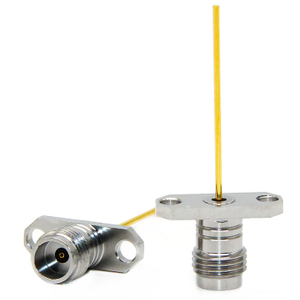

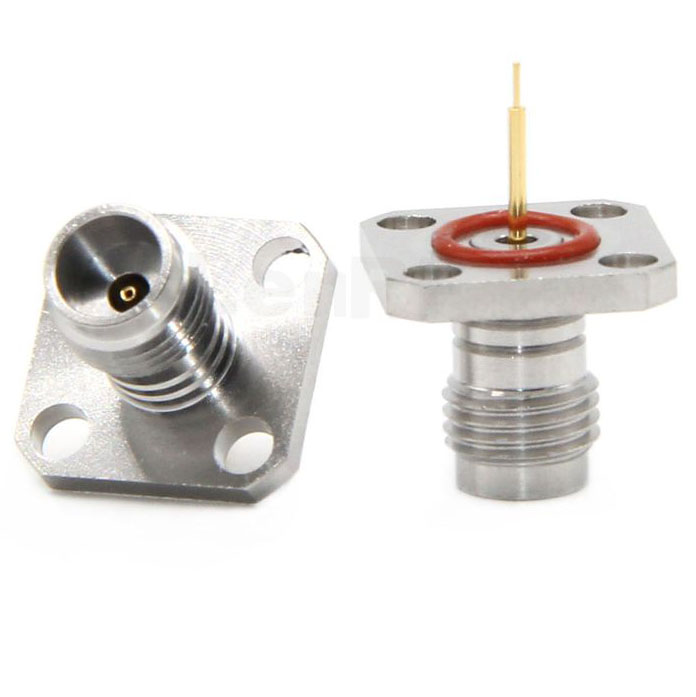

Available in jack, plug, flange-mount, and PCB-mount versions
Ideal for mmWave, 5G, and test & measurement environments
Applications
Wireless Communication Systems
RF/microwave test benches and calibration equipment
TV and radio transmission systems
Network analyzers, spectrum analyzers, and oscilloscopes
Radar & Military Equipment
Telecommunications & 5G
Test & Measurement Equipment
GPS & Navigation Systems
Specification
Body Plating | Gold |
Body Material | Stainless Steel |
Contact Plating | Gold |
Contact Material | Beryllium Copper |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 65 |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Size Category | Miniature |
Temperature Range | -65 to 165 °C |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material—beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Are RF connectors weatherproof?
Some RF connectors are designed with gaskets and sealing (e.g., N-type, 4.3-10) for outdoor telecom, antennas, and harsh environments. Indoor lab connectors (e.g., SMA, BNC) are usually not weatherproof unless specified.
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
What materials are RF connectors made of?
Body: Brass, stainless steel, or beryllium copper (with nickel, gold, or silver plating). Insulator: PTFE, PE, or advanced low-loss dielectrics. Contacts: Gold-plated brass or beryllium copper for low resistance and durability.
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
