Overview

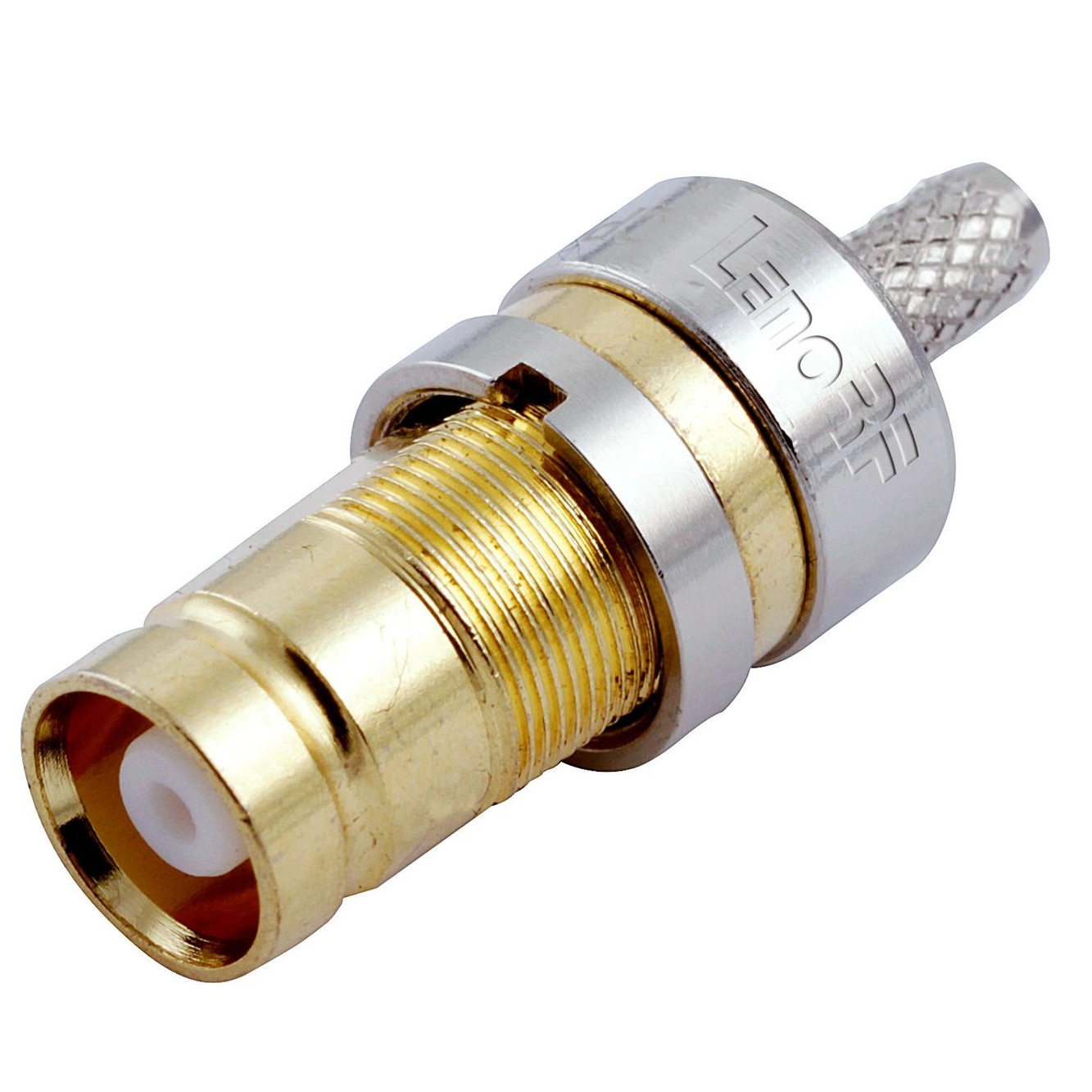

The 1.6/5.6 connector series is a compact European design optimized for high-density installations, making it well-suited for applications where space is limited,such as in-vehicle infotainment and connectivity systems and railway communications and signaling systems. Designed to operate at 75 ohms up to 1 GHz, this series is available in two coupling styles: threaded for secure, reliable mating, and push-pull for fast, convenient connections.
The 1.6/5.6 series meets multiple international standards, including DIN 47295, DIN 41626, DIN 47297, NFC 93-569, NFC 93-570, IEC 169-13, and CECC 22230.
Features
Offered with either threaded or push-pull coupling options
Crimp-crimp termination enables fast and simple assembly
Complies with IEC 169-13, DIN 47295, and NFC 93-570 international standards, optimized for SMT applications
Applications
Telecom equipment
Broadcast
Instrumentation
Test and measurement equipment
in-vehicle infotainment and connectivity systems
railway communications and signaling systems
vehicle radar (24 GHz, 77 GHz for ADAS)
Specification
Body Plating | Gold |
Body Material | Brass |
Cable Type | ST212 |
Contact Plating | Gold |
Contact Material | Phosphor bronze |
Contact Termination | Crimp |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 1 |
Gender | Female |
Impedance (Ohms) | 75 |
Insulator Material | PTFE |
Orientation | Straight |
Size Category | Miniature |
Temperature Range | -65 to 165 ° C |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | DIN 47295, DIN 41626, DIN 47297, NFC 93-569, NFC 93-570, IEC 169-13, and the CECC 22230 standards |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What’s the lifespan of an RF connector?
Connector durability is rated in mating cycles: General-purpose connectors (BNC, SMA): 500 cycles. Precision connectors (2.92 mm, 2.4 mm): 500 cycles or less. Rugged telecom connectors (N, 7/16 DIN): 500 cycles.
Can RF connectors be reused?
Yes, but performance degrades with wear. Precision connectors (used in test equipment) should be handled carefully—damage to threads or pins increases VSWR and insertion loss.
What’s the difference between threaded, bayonet, and push-on RF connectors?
Threaded (SMA, N, TNC): Secure, vibration-resistant. Bayonet (BNC): Quick connect/disconnect. Push-on (MCX, SMP): Ultra-fast, compact, used in high-density modules.
Are RF connectors interchangeable between brands?
Yes, if they follow the same standard (e.g., SMA-to-SMA). However, tolerances, plating, and dielectric quality vary — mixing low-quality and precision connectors can damage equipment.
