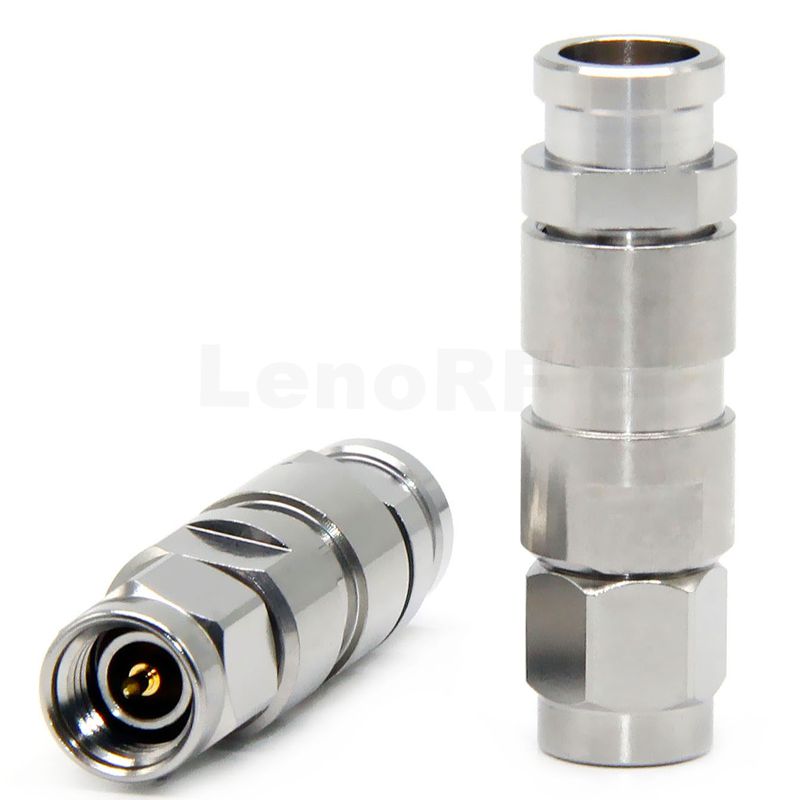

Features
Frequency range: DC – 34 GHz
50 Ohm impedance for precise RF signal transmission
Low VSWR (< 1.15 typical) and low insertion loss
Threaded coupling ensures robust, vibration-resistant connection
Air dielectric construction for mode-free performance
Stainless-steel housing, gold-plated BeCu contacts for high durability
Intermateable with 2.92 mm and SMA connectors
Available in straight, right-angle, bulkhead, and flange-mount versions
Designed for RF testing, radar, satellite, and communication systems
Applications
Wireless Communication Systems
Patient monitoring systems with wireless connectivity
Radar & Military Equipment
Wireless sensor networks and IoT gateways
Telecommunications & 5G
Test & Measurement Equipment
RF ablation, telemetry, and diagnostic tools
GPS & Navigation Systems
Specification
Body Plating | Passivated |
Body Material | Stainless Steel |
Contact Plating | Gold |
Contact Material | Beryllium Copper |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 34 |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Size Category | Miniature |
Temperature Range | -65 to 165 °C |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material—beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What is the difference between RF connectors and coaxial connectors?
They are often used interchangeably. However: Coaxial connector refers to the physical design (shielded cylindrical form). RF connector emphasizes its use in radio-frequency applications. Most RF connectors are coaxial.
What is “reverse polarity” (RP-SMA, RP-TNC)?
Reverse polarity means the gender of the center pin is swapped while keeping the outer body style unchanged. It was introduced to comply with regulatory requirements in Wi-Fi devices and to prevent connection with standard SMA/TNC.
