Precision Test Cable VNA50

  • Armoured Tube
  • Precision Test Cable T06
  • Precision Test Cable T06s
  • Precision Test Cable T06G
  • Precision Test Cable T18
  • Precision Test Cable T18P
  • Precision Test Cable T26
  • Precision Test Cable T26S
  • Precision Test Cable T26P
  • Precision Test Cable T40
  • Precision Test Cable T40P
  • Precision Test Cable T50P
  • Precision Test Cable T67P
  • Precision Test Cable T50
  • Precision Test Cable T67
  • Precision Test Cable VNA18
  • Precision Test Cable VNA26
  • Precision Test Cable VNA50

Product Short Description:

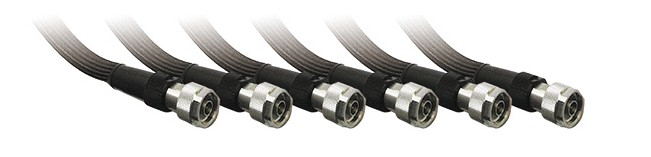

Super flexible with armour tube. Maximum working frequency: 50 GHz. Specially for VNA network analyzer. Excellent return loss and insertion loss.


Product Description
Part No ZVNA50
Mechanical & Environmental Characteristics
Outer braiding Polyester-PET
Cable Assembly Outer Diameter 15.2mm/0.6"
Min Bending Radius/Repeated 50.0mm/1.97"
 Operating Temperature -55。+105℃
Electrical Characteristics
Impedance 50 Ω Velocity of Propagation 76.00%
Max Operating Frequency 26.5 GHz Sheiding Effectiveness 90dB min.
VSWR Max  1.40:l @ DC-50 GHz Dielectric Withstanding Voltage 1KV(rms)
Mechanism Phase Stability < ±5° @ 50 GHz Amplitude Stability < ±0.05dB@50GHz
Type Selection
Type Connector A Connector Connector B Connector Insertion Loss MAX@50GHz
ZVNA50-NMD2.4f-2.4m-LM 2.4MM FEMALE 2.4 MM MALE 2.8dB⑥0.61M , 4.1dB@)0.91M
ZVNA50-NMD2.4f-2.4m-LM 2.4MM FEMALE 2.4 MM FEMALE 2.8dB@0.61M , 4.1dB@0.91M
