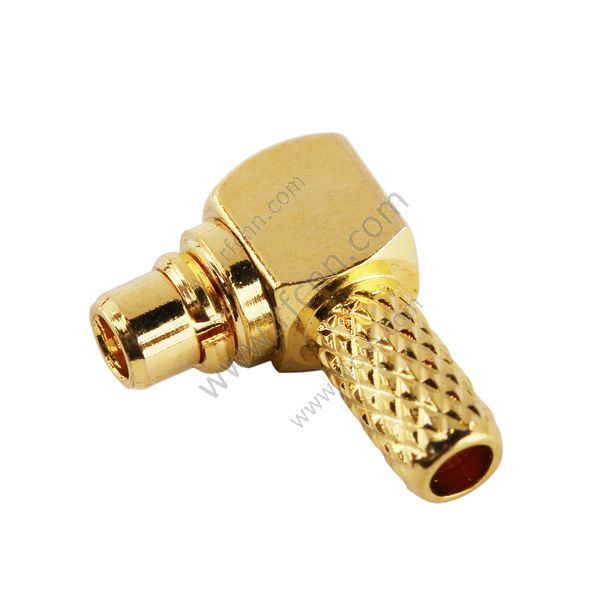

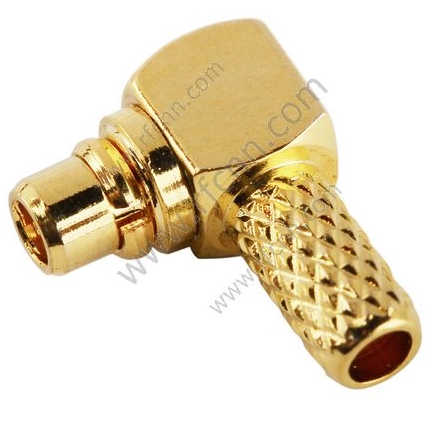

MMCX Connector Male Right Angle Crimp For RG316 Cable

Microminiature compact and lightweight connectors (MMCX) are designed for densely packed electronic packages with space and weight constraints. A snap-on interface with no slotting in the outer conductor ensures mechanical stability. Wireless/PCS devices, telecommunications, GPS receivers, and consumer electronics are examples of typical uses. Non-magnetic versions of medical MRI scanners are available.
  • 22-457
  • 86-5160-115-01
  • Male
  • Right angle
  • Crimping
  • Crimping
  • RG316
  • 86-5160-115-01.pdf
  • 86-5160-115-01.stp
Availability:
Quantity:
Materials&Electroplating
ConductBrass/   Silver or Golden Plating
InsulatorPTFE
BodyBrass   /Ternary or nickel or silver
Other PartsBrass/   Nickel Plating
Electric Performance
Impedance50   OHMS
Frequency Range0-3GHz
VSWR≤1.30
Rating Voltage500V
Environmental
Temperature Rating-65°C   to +165°C
Corrosion (Salt Spray)MIL-STD-202,   Method 101, Condition B
VibrationMIL-STD-202,   Method 204, Condition D, 20 Gs
ShockMIL-STD-202,   Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202,   Method 107. Cond. B, -65°C to +125°C
Moisture ResistanceMIL-STD-202,   Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202,   Method 105, Condition C, 70k Ft.
